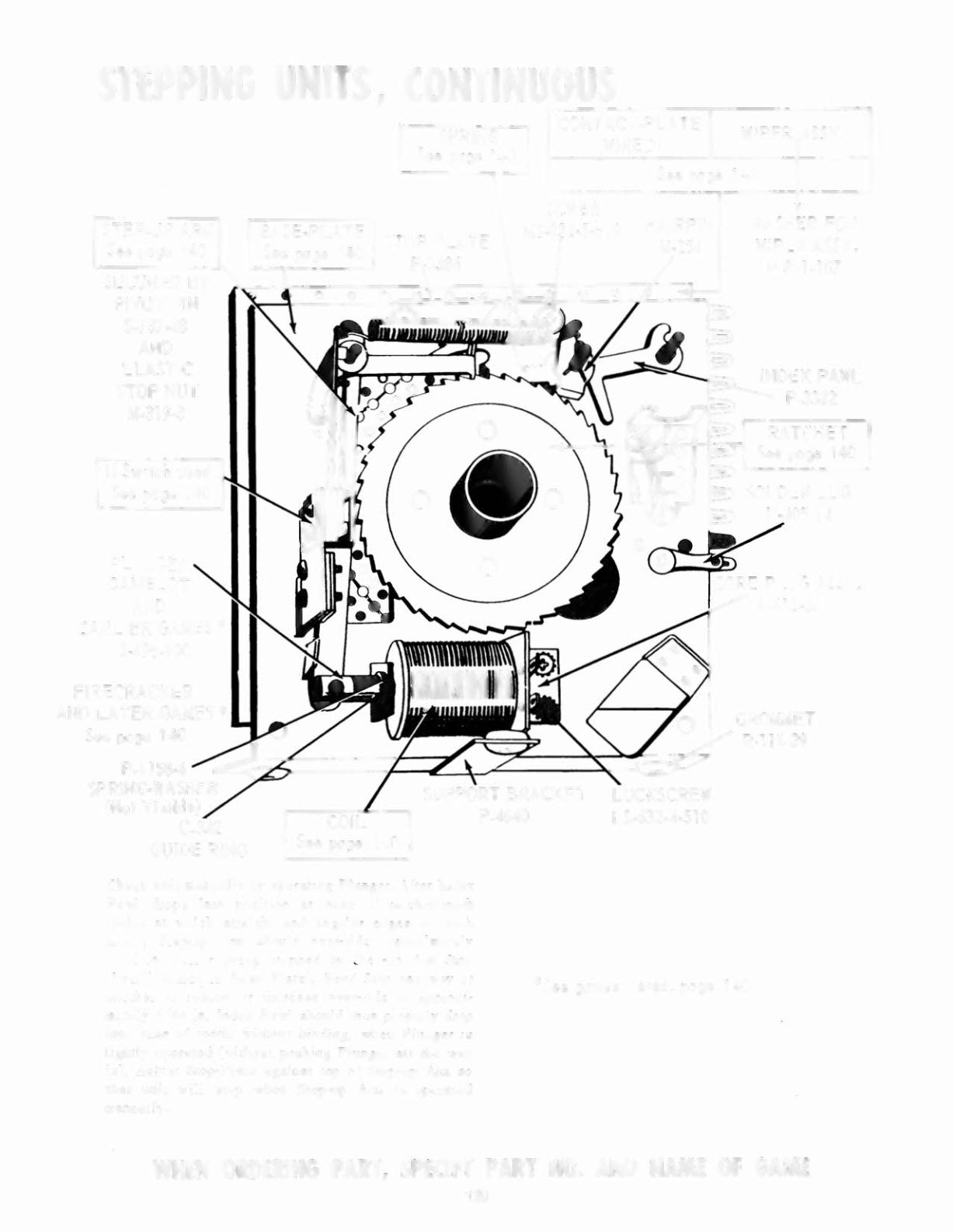

STEPPING UNITS, CONTINUOUS
r--------------,--------------,
PRING
See page
140
CONT ACT -PLA TE
(WIRED)
WIPER SSY.
SECURED BY
PIVOT PIN
S~737-48
AND
ELASTIC
STOP NUT
M-319-3
See page
140
STEP-UP ARM
See page
140
BASE~PLATE
WASHER FOR
WIPER ASSY.
P-801-107
If
Switch
used,
See page
140
o
~o
RATCHET
See page
140
PLUNGER
CAMELOT
AND
EARLIER GAMES
*
5-496-100
o
FIRECRACKER
AND LATER GAMES
*
See page
140
P-1158-6
SPRI NG-WASHER
(Not Vi si bl e)
C-342
GUIDE RING
GROMMET
R-111-29
SUPPORT BRACKET
P-4640
Check unit manually by operating Plunger. After Index
Pawl drops into position at base of rarchet-roo th
(pOInt at which straight
and angul ar edges of tooth
meet),
Step-up Arm should over-ride approximately
1/64 in. before being stopped by Step-up Arm Stop
("ear" formed in Base Plate).
Bend Stop one way or
another
( 0
reduce or inc re ase over-ti de to appro xi-
marel y 1/64 in. Index Pawl should then proper ly drop
into base of tooth, without binding ,
when Plunger is
lightly operated (withou t pushing Plunger all the way
in). Adjust Stop-P late against top of Seep-up Arm so
that unit will step when Seep-up Arm is operated
manually.
*See games listed, page
140
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
139
