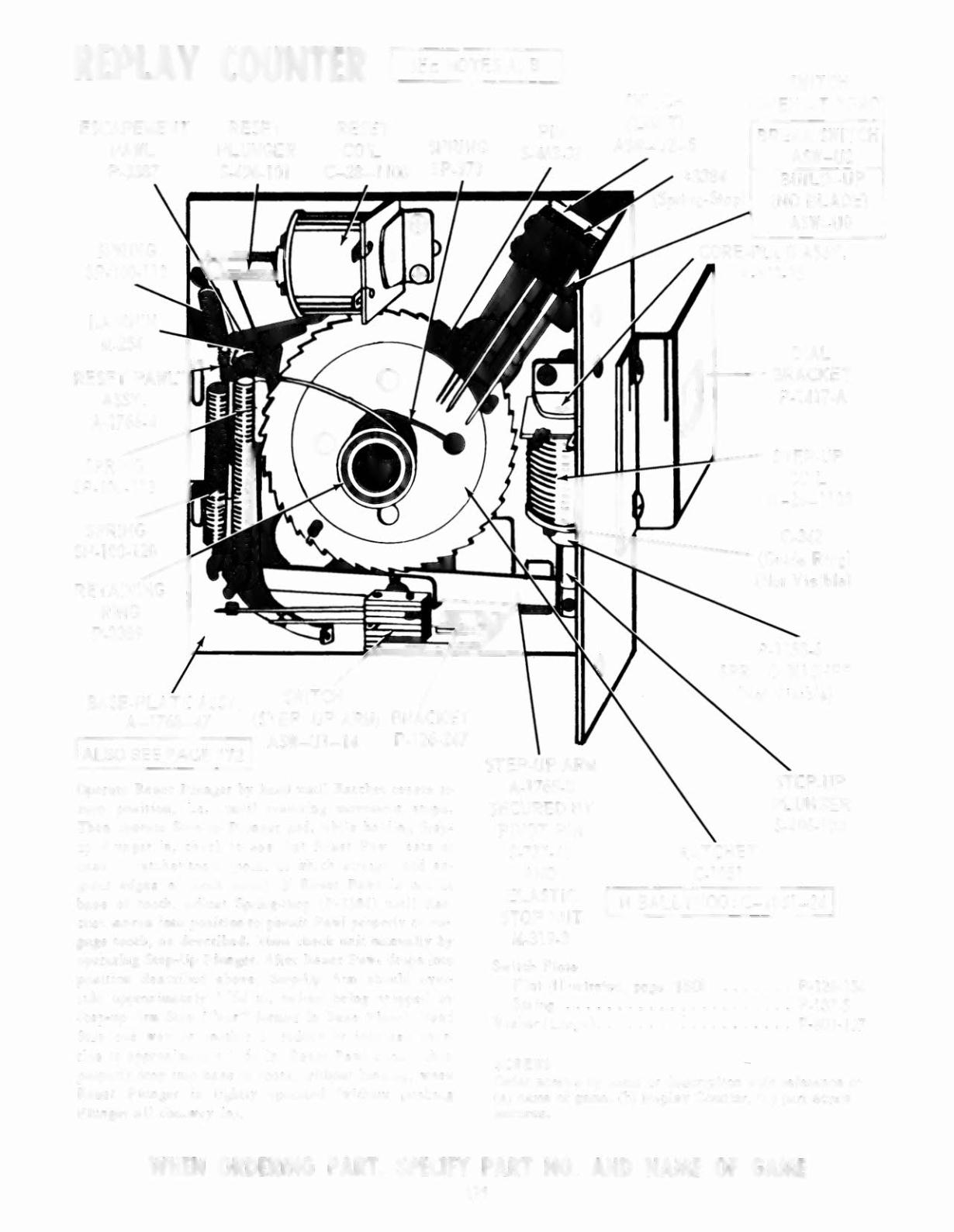

IEPLA Y COUNTER
I,---SE_EN_OT_ES_A,
B__.
ESCAPEMENT
PAWL
P-3387
RESET
PLUNGER
S-496-101
RESET
COIL
C-28-1100
HAIRPIN
M-254
RETAINING
RING
P-3389
BASE.PLA TE ASSY.
SWITCH
A-1768-47
(STEP-UP ARM) BRACKET
I
I
ASW-Ul-14
P-126-247
ALSO SEE PAGE 172
Operate Reset
Plunger by hand until Ratchet
resets to
zero position,
i.e.,
until
resetting movement
srops.
Then operate Step-up Plunger and, while holding Step-
up Plunger
in, check to see that Reset
paw
I
rests at
base of ratchet-tooth (point at which straight
and an-
gular edges of tooth meet).
If
Reset
Pawl is not at
base of tooth,
adjust
Spring-Stop (P-3384)
unt
i
l Rat-
chet moves into position to permit Paw! properly to en-
gage tooth,
as described.
Then check unit manually by
operating Step-Up Plunger.
After Reset
Pawl drops into
pos irion described above,
Step-Up Arm should over-
ride approximately
1/64
in. before being stopped by
Step-up Arm Stop ("ear" formed in Base Plate).
Bend
Stop one way or another
to
reduce or increase over-
ride to approximately 1/64 In. Reset
Pawl should then
properly drop into base of tooth,
withol.lt binding,
when
Reset
Plunger
is lighrJy operated (without
pushing
Plunger all the •.
way
in).
SWITCH
(LIMIT)
ASW-U2-5
SWITCH
(OPEN AT ZERO)
BREAK SWITCH
ASW-U2
BUILD-UP
(NO BLADE)
ASW-UO
CORE-·PLUG ASSY.
A-613-33
DIAL
....,___ BRACKET
P-1417-A
STEP·UP
COIL
B-26-1100
C-342
P-1158-6
SPRING- WASHER
(Not Visible)
STEP-UP ARM
A-1765-S
SECURED BY
PIVOT PIN
5-737-48
AND
ELASTIC
STOP NUT
M-319-3
STEP-UP
PLUNGER
5-496-100
RATCHET
C-l051
liN BALLYHOO:
C-1 051-241
Switch Plate
Flat (II Iustrofed, page 150)
P-126-154
Spring
P-137-5
Wosher{Lorge) ...•....
~
P-801-107
SCREWS
Ord er screw s
by
nameor desc rip tion with reference to
(a) name of game ,(b ) Replay Count er, (c ) part screw
secures .
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
