Page 89 - Bally 1971 Parts Catalog

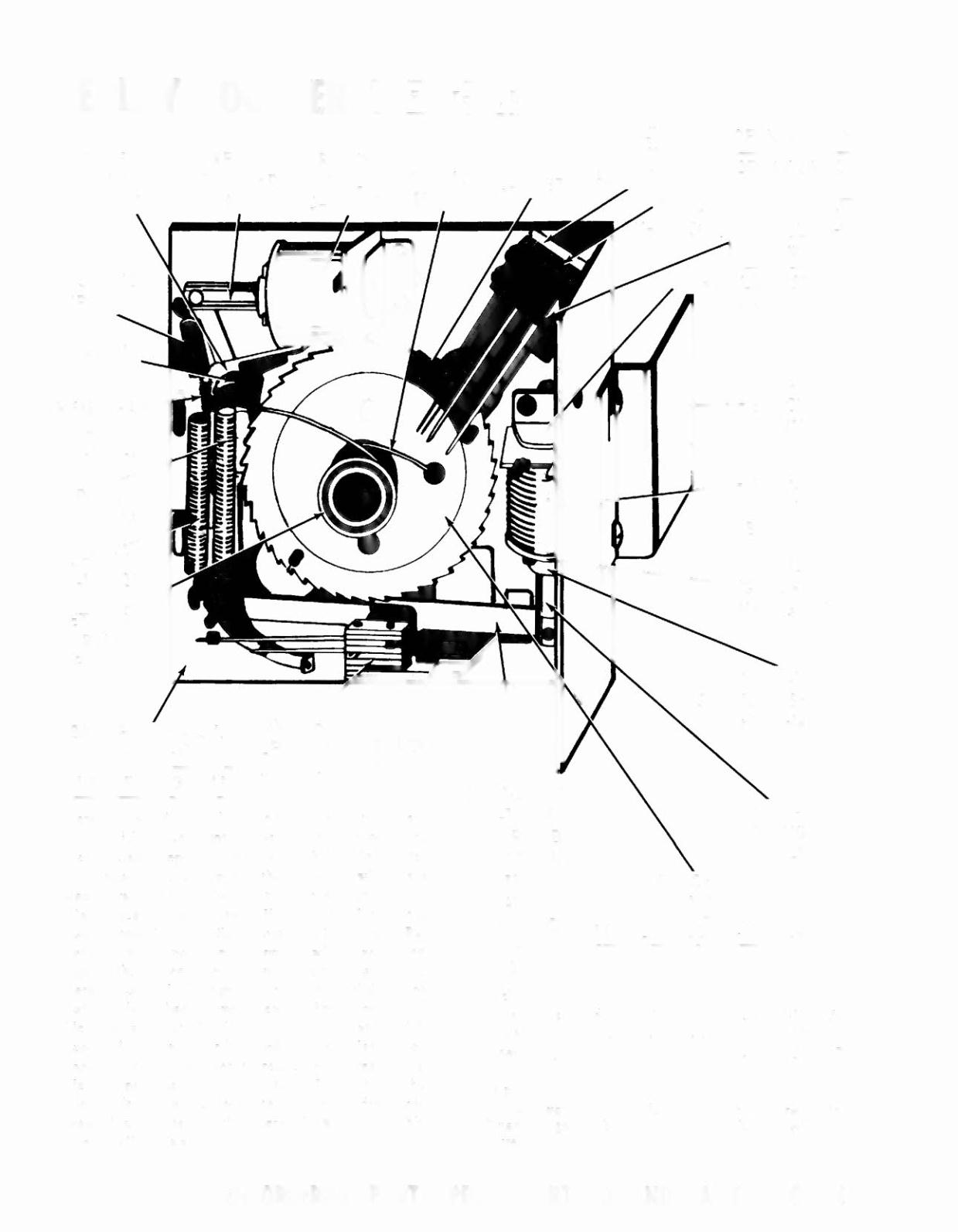

REPLAY COUNTERl __S_EE_NO_TE_SA_,B~
ESCAPEMENT
PAWL
P-3387
RESET
PLUNGER
S-496-101
RESET
COIL
C-28-1100
HAIRPIN
M-254
RETAINING
RING
P-3389
SWITCH
A-1768-47 (STEP-UP ARM)
I ALSO SEE PAGE 1471 ASW-Ul-14
Operate Reset Plunger by hand until Ratchet resets to
zero position, i.e., until resetting movement stops.
Then operate Step-up Plunger and, while holding Step-
up Plunger in, check to see that Reset Pawl rests at
base of ratchet-tooth (point at which straight and an-
gular edges of tooth meet). If Reset Pawl is not at
base of tooth, adjust Spring-Stop (P-3384) until Rat-
chet moves into position to permit Pawl properly to en-
gage tooth, as described. Then check unit manually by
operating Step-Up Plunger. After Reset Pawl drops into
position described above, Step-Up Arm should over-
ride approximately 1/64 in. before being stopped by
Step-up Arm Stop ("ear" formed in Base Plate). Bend
Stop one way or another to reduce or increase over-
ride to approximately 1/64 in. Reset Pawl should then
properly drop into base of tooth, without binding, when
Reset Plunger is lightly operated (without pushing
Plunger all the __way in).
SWITCH
(LIMIT)
ASW-U2-5
P-3384
SWITCH
(OPEN AT ZERO)
BREAK SWITCH
ASW-U2
BUILD-UP
(NO BLADE)
ASW-UO
CORE-PLUG ASSY.
A-613-33
DIAL
-+--- BRACKET
P-1417-A
STEP-UP
COIL
B-26-1100
C-342
(Guide Ring)
(Not Visible)
P-1158-6
SPRING- WASHER
(Not Visible)
STEP-UP ARM
A-1765-8
SECURED BY
PIVOT PIN
S-737-48
AND
ELASTIC
STOP NUT
M-319-3
STEP-UP
PLUNGER
5-496-100
RATCHET
C-l051
liN BALLYHOO:C-l051-24!
Switch Plate
Flat (Illustrated, page 129) P-126-154
Spring P-137-5
Washer(Large) P-801-107
SCREWS
Order screws by name or description with reference to
(a) name of game, (b) Replay Counter, (c) part screw
secures.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
