Page 52 - Bally 1971 Parts Catalog

TRIP RELAYS, MOTORIZED
Reset Assys.
Effective with ON BEAMand later games*, game to game variations in Reset
Assy., Motorized Trip Relay, are described on this page.
If part number of variable component not listed on this page is not known,
order by name with reference to name of game.
ON BEAM JOUST
As illustrated, page 67, with
Cam & Hub Assy.,
At center of shaft A-800-153
At end of shaft A-800-152
Clutch Assy. (2 used) A-3379·1
A·3379·1
End Plate Assy.
(Remote from Motor) A-3095-1
MOTOR (60 CYCLES) .. , E 119-384
Reset Cam (14 used) C-706
Roll Pin P-1637-22
(One securing each of 2 Clutch Assy.)
Shaft, Cam. . . . . . . . . . .. S-1961-17-1 X-1 0

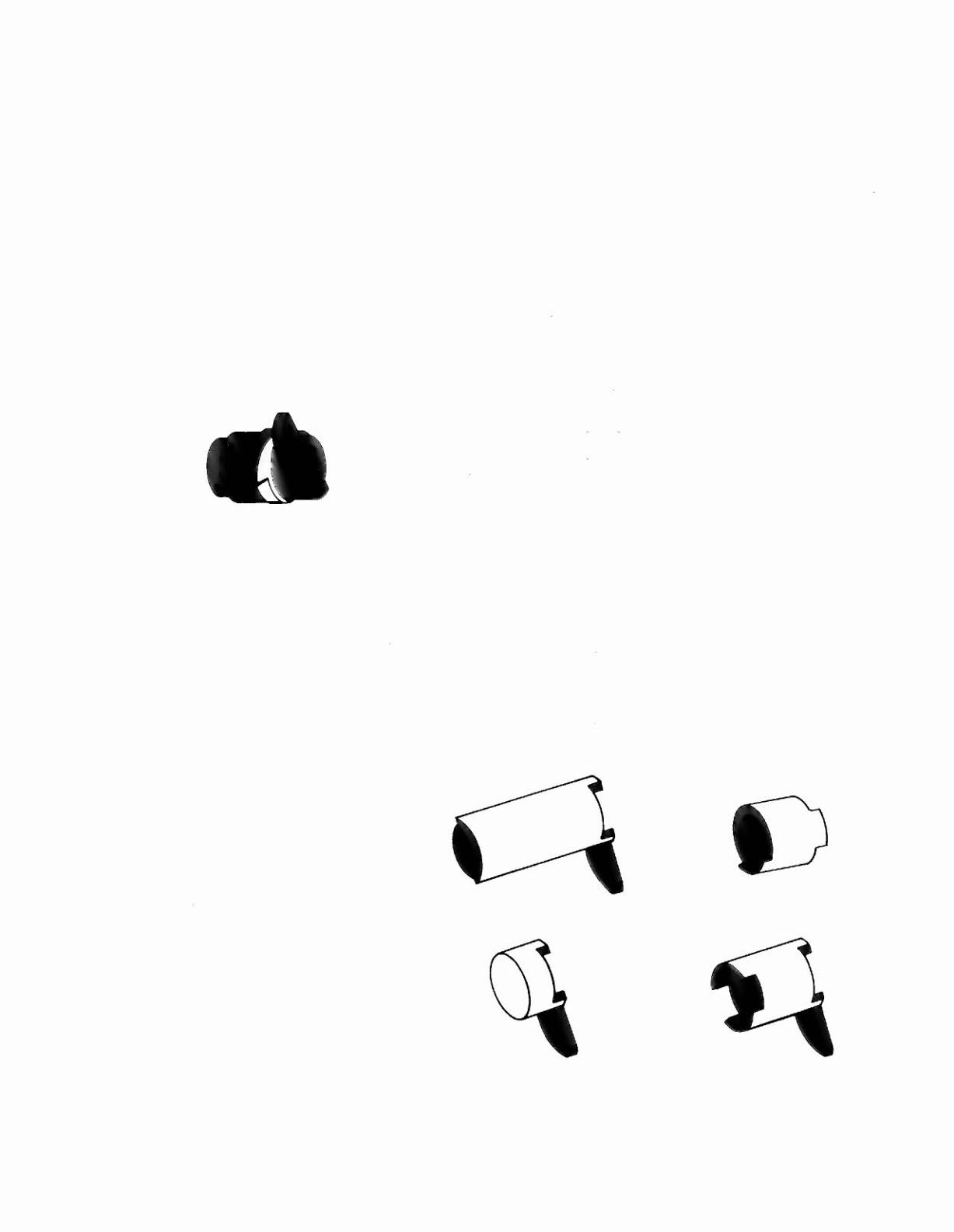

Sleeve (Illustrated below),
Center of Shaft S-231-761
End of Shaft S·231-760
Tie Rod (2 used) S-1962-17
~0/32-i
S·731-760 J~~~_~!---- PY64----j
S-731-761
As illustrated, page 67, with
End Plate Assv .
(Remote from Motor)
Reset Cam
(12 used) .
(1 used)
(1 used) _
Shaft, Cam,
A-3095-2
C-706
C-7061
C-706-2
TRAIL DRIVE
As illustrated, page 67, with
Cam & Hub Assy. A-800-152
End Plate Assy.
(Remote from Motor) .. A-3095-3
Reset Cam (Illustrated below)
(11 used) . . . . . . . . . . C-706
11 used) (ADAPTE R) .. C-706-4
11 used I . . . . . . . . . . . .. C-7065
Shaft, Carn S-1961-12
Sleeve S-231-760
Tie Bar 12 used) S-1962-12
RESET CAM ADAPTER
C-706-4
RESET CAM C-706-5
* See chronological list of games, page 6.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
Clutch End S 1968 2
S 1959-10
S 1962-14
Motor End
Tie Rod .
BOWL·OAs illustrated, page 67, with
Cam & Hub Assy.,
Center of Shaft. . . . . .. A-800-153
End of Shaft. . . . . . . .. A-800-152
Clutch Assy A-3379
Similar in appearance
to A-3379-1 at left.
ORDER A-3379 FOR BOWL-a.
End Plate Assy.
(Remote from Motor) .. A-3095-3
Reset Cam (13 used) .... C 706
Roll Pin
(Secures Clutch Assy.) .. P-1637-23
Shaft, Cam S-1961-15X12
Sleeve (Illustrated at left)
Center of Shaft. . S 231 761
End of Shaft S-231-760
Tie Bar (2 used) . . . . . .. S-1962-15
RESET CAM C-706
RESET CAM C-706-1
68 (Pages 69-74 Reserved.)
