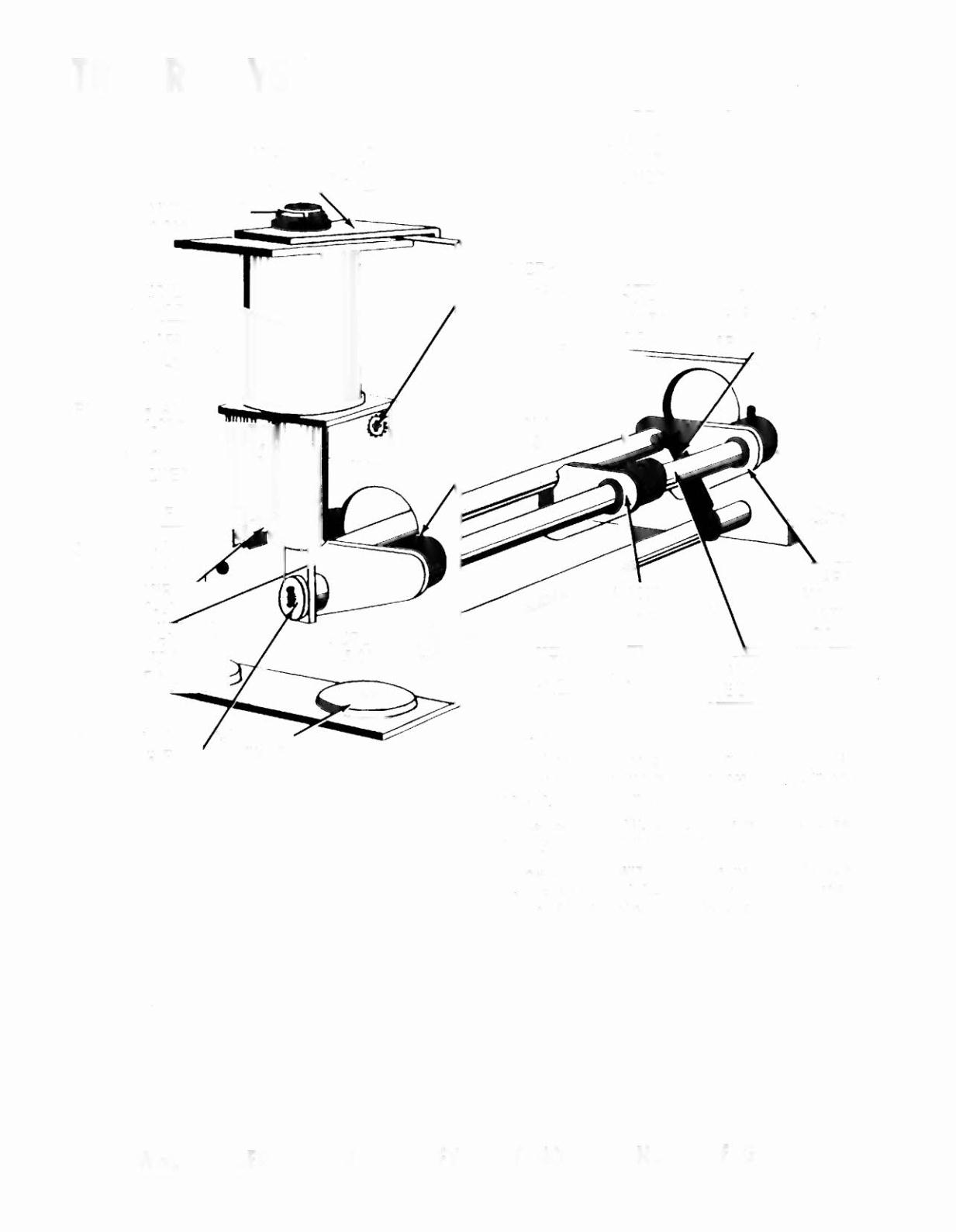

TRIP RELAYS
RETAINING RING
P-2891-8
RELAY COILS
AND SWITCHES
SEE NOTE A
LOCKSCREW
LS-832-4-S10
r-------,
RESET-SHAFT
SPRING
SEE NOTE A SP-196--2 (Clear)
or
SP-196--3 (Red)
COIL
SEE NOTE A
P-llS8-9
SPRING WASHER
RESET-ARM
AND
SPRING STUD
SEE NOTE A
3/32
in.
by 1}
in.
COTTER PtN
NOTE A
Parts which vary [rom game to game should be ordered
by name or description with reference to (a) Trip Relay
Bank, (b) name of game.
When ordering COIL,
add
to
above references (c) name
of Relay to which Coil is related.
When ordering SWITCH,
if Relay
uses 2
Switches, add
to above references (d) LEFT or RIGHT to indicate relative
positive of Switch, viewed from lug side.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
51
