Page 16 - Bally 1971 Parts Catalog

NOTE A
Coin Switch & Rejector Mounting Assy.
TRIO and earlier games*:
Order parts by name with reference to
(a) Coin Switch & Rejector Mounting Assy.,
(b) Name of game.
Availability of components for TRIO
and earlier games* is not guaranteed.
BLUE RIBBON through*BOWL-O AS-277-97
BIG VALLEY and later games*
With Single Coin Chute AS-277-137
As illustrated, page 13
With Double or Triple Coin Chutes AS-277-135
Same as AS-277-97, page II, with
ADDED COMPONENTS
Lock-out Wire M-1504
Lock-out Wire Bracket P-6629-49
CHANGED COMPONENTS
Slug Rejector Mount Assy A-1388-47
REMOVED COMPONENTS
(ADDED TO FRONT DOOR)
Push Button Assy AS-2377-1
Slug Rejector Mounting Bracket P-6046-8
NOTE B
When ordering comple te Assy., specify
(a) Coin, as stated in NOTE C,
(b) Coin Guide, as stated in NOTE D,
(c) Coin Guide Spacer, NOTE D.
NOTE C
Coin Switch is either
E-I08-92 or
E-I08-98
depending on weight of coin. If not sure of correct part
number, order Coin Switch by name with reference to (a)
coin denomination, (b) name of game.
NOTE D
To determine correct part number of Coin Guide and Coin
Guide Spacer refer to International Coin Mechanism Data,
commencing on page 23.
SCREWS
Order screws by name or description with reference to
(a) AS-277-97 or AS-277-135,
(b) part screw secures.

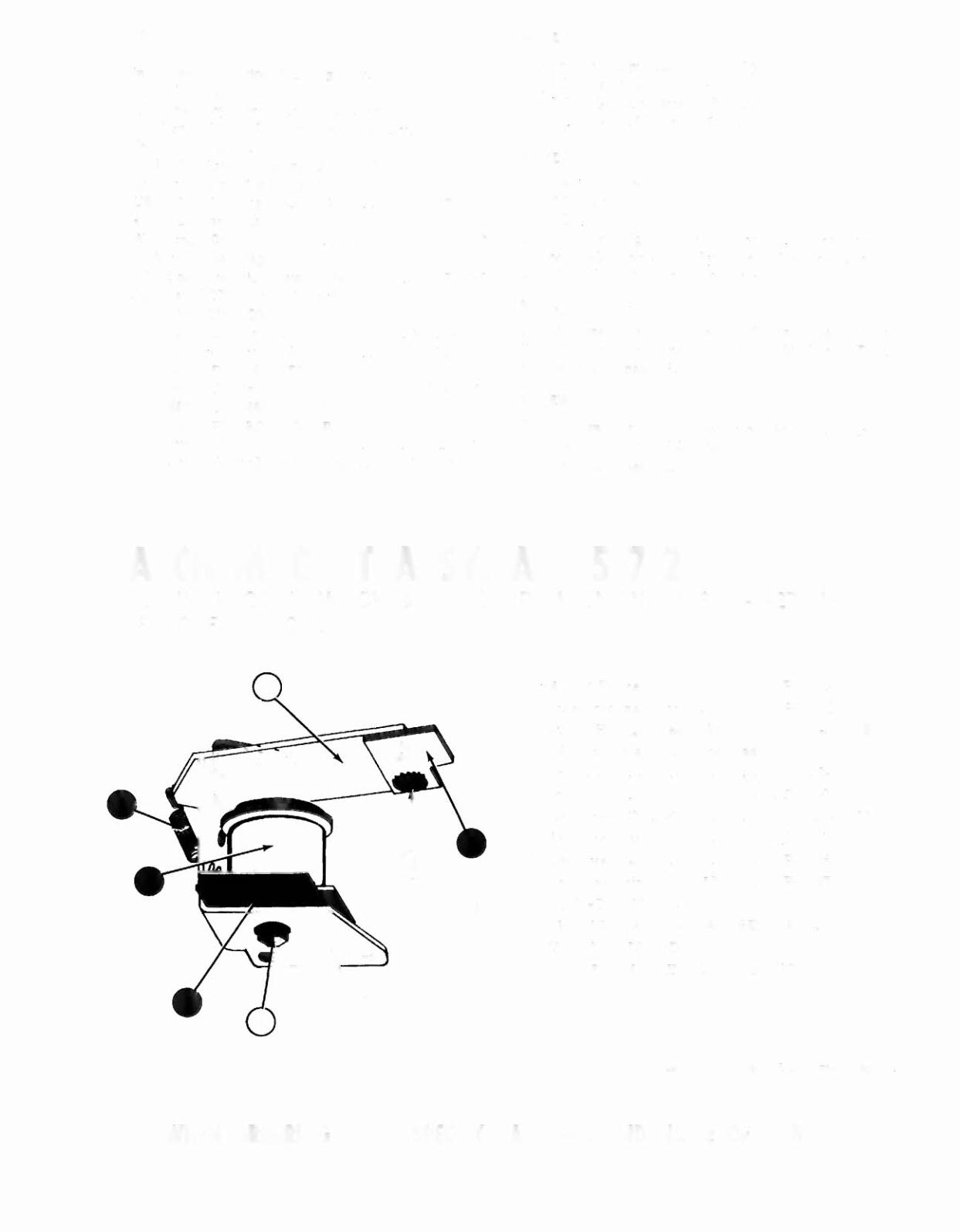

LATCH MAGNET ASSY. AS·2517·2
USED WITH COIN SWITCH & REJECTOR MOUNTING ASSY. AS-277-135
SEE NOTE A ABOVE
Q) Magnet Frame ••••••••••••• P-7225-3
Q) F'ishpaper Insulator ••••••••. P-150-100
@ Screw, Hexagon Head, Brass ••• No. 8-32x3/8 in.
With External Tooth Lockwasher
® Coil . . FC-33- 2600
@ Spring ..•..............• SP-IOO-276
@ Lockscrew (2 used) .......•. LS-832-3-S11
(J) Armature (Latch) P-7207-3
® Armature Plate P-7326
® Lock-out Strip (NOT SHOWN) P-7327
LOCK-OUT STRIP,
WHICH ENGAGES ARMATURE PLATE,
IS NOT INCLUDED
IN LATCH MAGNET ASSY. AS-2S17-2
*See chronological list of games, page 6.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
12
