TRIP RELAYS, MOTOR.IZED I SEE NOTE A, PAGE 75

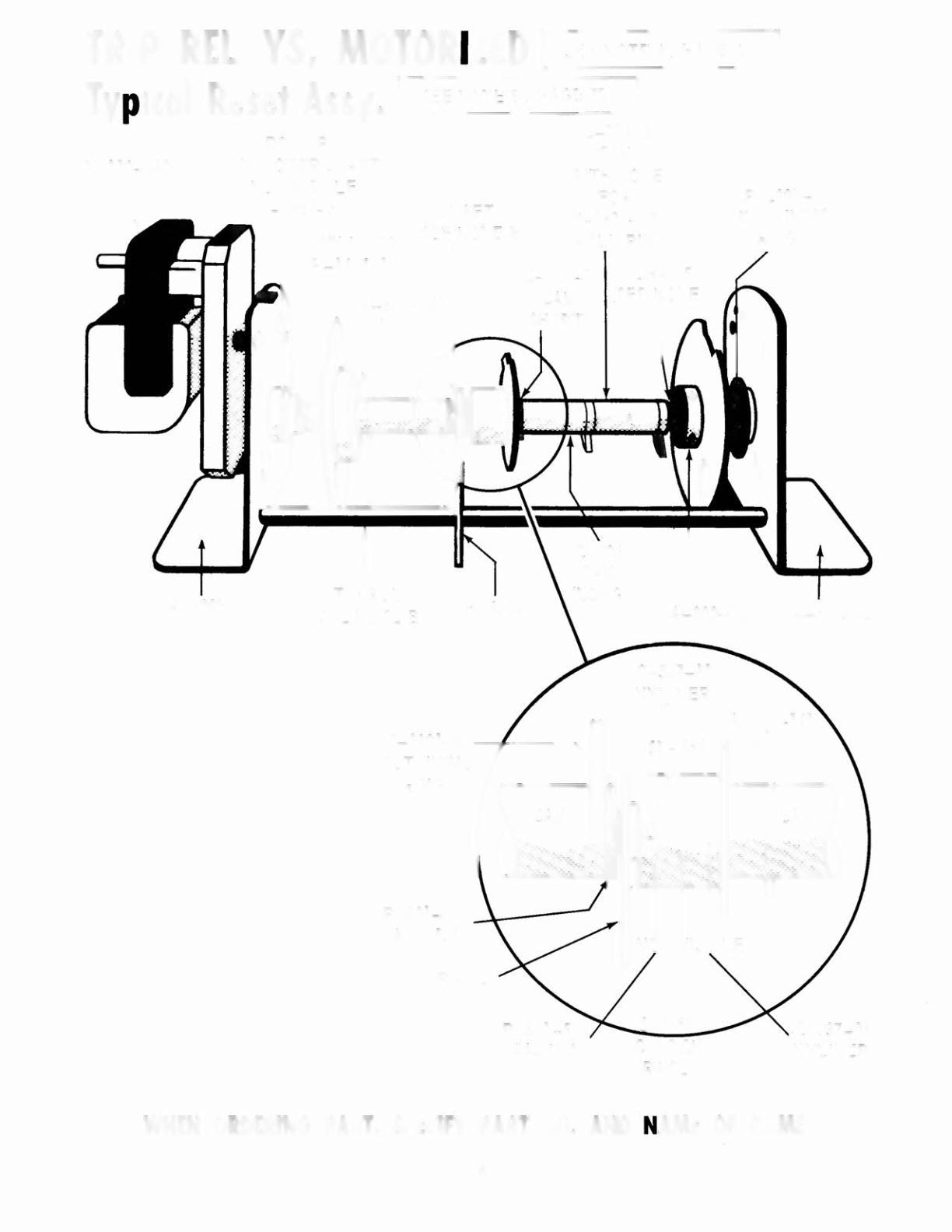

Typical Reset Assy. I SEE NOTE B, PAGE 75 I
E-119-362
ROLL PIN
IN MOTOR SHAFT
(NOT VISIBLE)
P-1637-58
ROLL PIN
P-1637-17
SHAFT
SEE NOTE B
C-706-2
CAM
WITH HOLE
FOR
P-1637-17
ROLL PIN
P-2891-9
RETAINING
RING
C-706-1 SHAFT
CAM SEE NOTE B
(SHORT)
A-3095 TIE ROD
SEE NOTE B P-6824
P-801-157 ___.i----
WASHER
C-537-11
NYLINER
P-2891-9 ~'----_
RETAINING
RING
CLUTCH
RACE
C-537-23
NYLINER
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
