A-15849-L-2

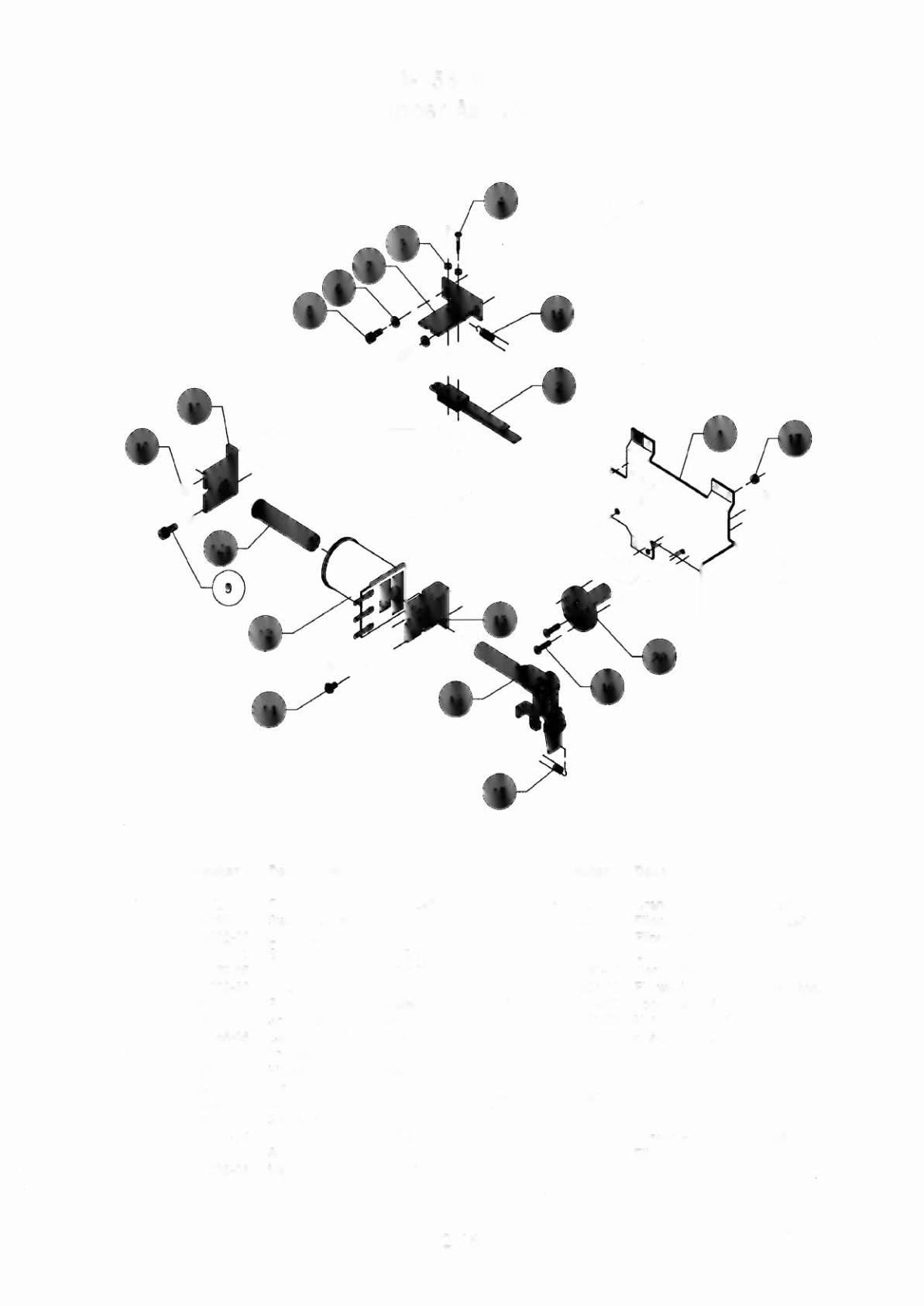

Flipper Assembly
Item Part Number
Description
Item Part Number
Description
1 B-13104-L
Flipper Base Assembly, Left
18 A-15848-L
Crank Link Assembly, Left
2 SW-1A-194
Switch Assembly
a) A-17050-L
Flipper Crank Assembly, Left
3 4701-00002-00 Lockwasher, #6 Split
b) A-15847
Flipper Link Assembly
4 4105-01019-10 Sh. Metal Screw, #5 x 5/8'
c) 02-4676
Link Spacer Bushing
5 4008-01079-05 Mach. Screw, 8-32 x
5116'
d) 4010-01086-14 Cap Screw, 10-32 x
7/8'
6 4701-00003-00 Lockwasher #8 Split
e) 4700-00023-00 Flatwasher, 5/8 x 13/64 x 16ga.
7
01-9375
Switch Mounting Bracket
f) 4701-00004-00 Lockwasher #10 Split
8 20-6516
Speednut, Tinnerman
g) 4410-01132-00 Nut, 10-32 ESN
9
4010-01066-06 Cap Screw, 10-32 x
318'
19 23-6577
Bumper Plug, 5/8'
10 4701-00004-00 Lockwasher #10 Split
20 03-7568
Flipper Bushing
11 A-12390
Flipper Stop Assembly
12 FL-11629
Flipper Coil, Blue
Associated Parts:
a) 03-7066-5
Coil Tubing
(Not Shown)
13 01-7695
Solenoid Bracket
14 4006-01017-04 Mach. Screw, 6-32 x 1/4'
21 23-6695
Flipper Rubber Ring, Red
15 10-364
Spring
22 20-9250-5
Flipper
&
Shaft
16 4006-01005-06 Mach. Screw, 6-32 x 3/8'
17 4406-01117-00 Nut, 6-32 Hex
2-16
