A-19782

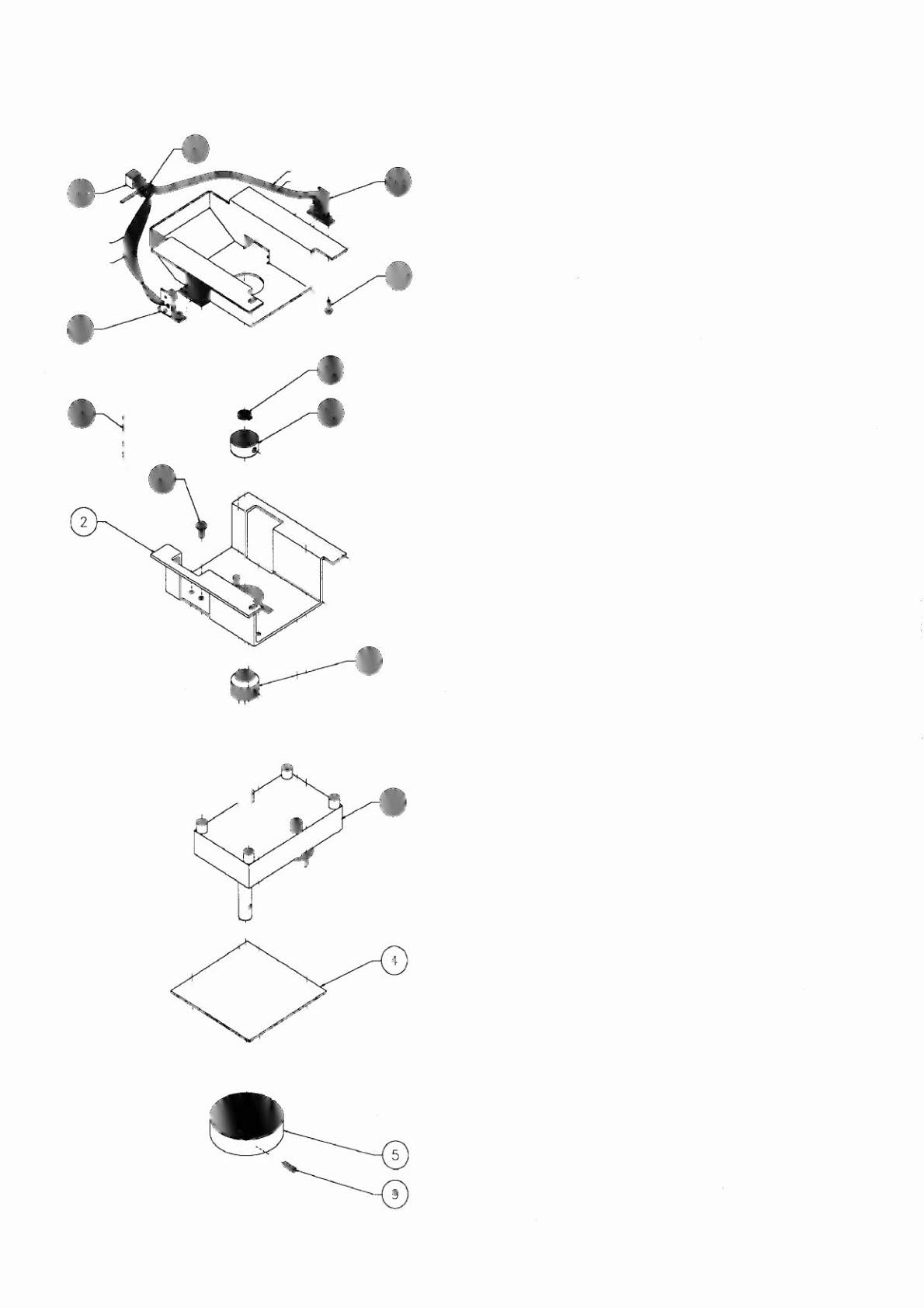

Magic Trunk Motor Assembly
, , , , , , , ,
,
10
~ ~ ~A
~
'-----
~~
'--~---------,!
..<.
'1:
•
I
P
,
,
-
2
Item Part Number
1 14-8018
2 04-10008
3 02-4176-28
4 A-19749
5 03-9318
6 4010-01008-06
7 4700-00009-00
8 4408-01119-00
9 4008-01083-08
10 20-8714-50
11 H-18601-2
12 A-19933
13 4008-01083-04
14 4010-01169-04
15 02-5175.1
Associated Assembly:
16 A-19791
a) 01-13629
b) A-16908
c) A-16909
d) 4106-01013-06
e) H-17609-11
f) 03-7520-2
2-25
Description
Motor, 12VDC
Trunk Motor Bracket
M-F Spacer #8-32 x 1-3/4"
Magic Trunk Opto Assembly
Opto Interrupter
Mach. Screw, #10-32 x 3/8"
Flat Washer, 11/64 x 7/16 x 21ga.
Nut #8-32 ESN
Set Screw #8-32 x 1/2"
External Retaining Ring
Cable Assembly
Motor Stop Assembly
Set Screw, #8-32 x 1/4"
Set Screw, #10-32 1/4
Motor Shaft Collar
Front Trough Assembly
Front Trough Bracket
LED Assembly
Photo Transistor Assembly
Sh. Metal Screw, #6 x 3/8"
Cable Assembly
Tie Wrap-Nylon, 3-7/8"
