A-18955

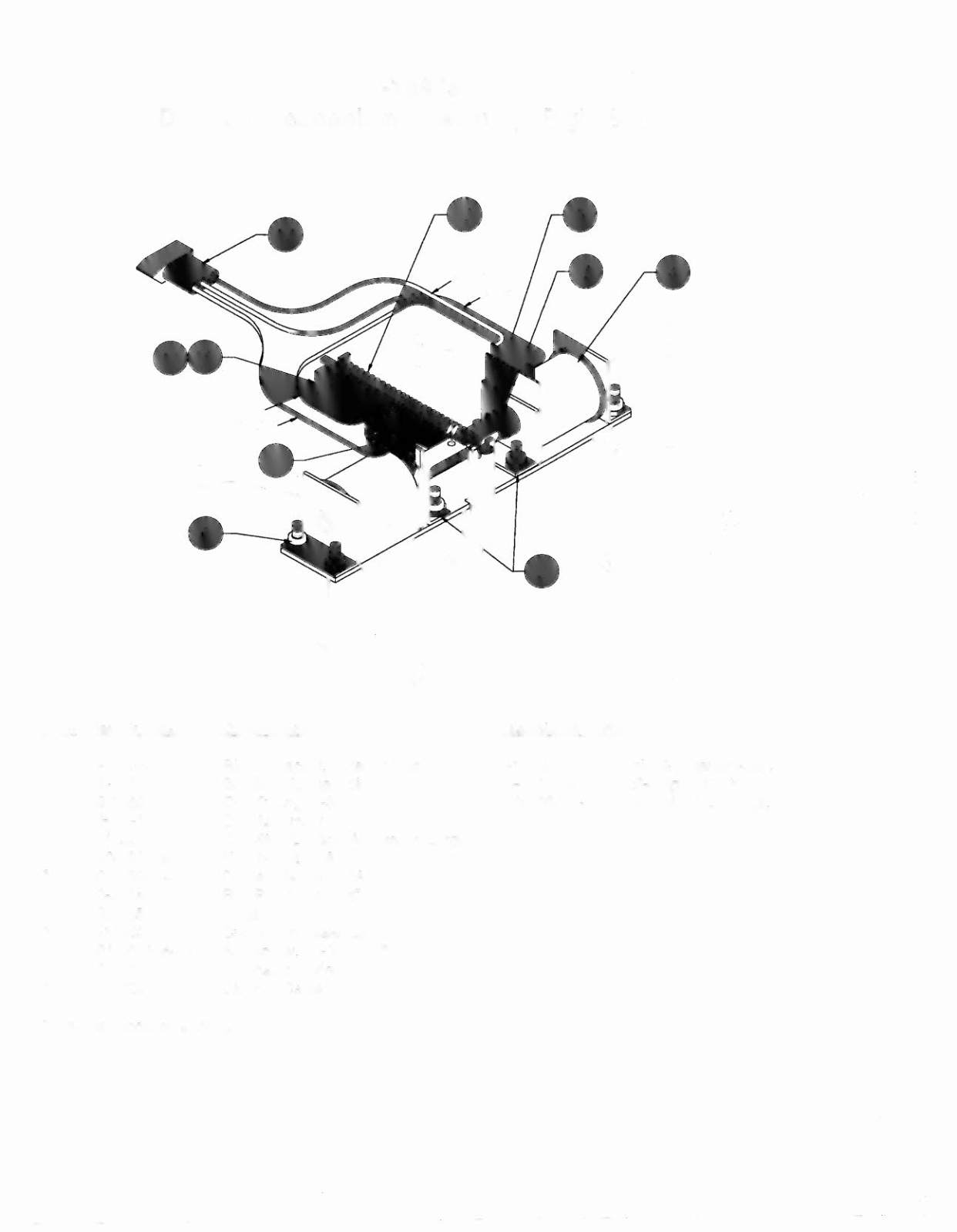

Divertor Mechanism Assembly
(Right Side)
.Imm.
Part Number
1 A-18956-1
2 01-13116
3 03-7066
4 AE-25-1000
5 A-18957
6 4408-01119-00
.•7 5070-09054-00
8 20-8716-5
9 02-5135
10 A-18983
11 4010-01186-04
12 10-320
13 H-19704
.•Only item location shown.
Description
Associated Parts
Right Bracket, Divertor Mech.
Bracket - Large Coil
Coil Tubing,
1-3/4"
Coil Assembly
Coil Stop Bracket Assembly, Large
Nut, 8-32 ESNA
Diode 1N4004, 1.0A.
Roll Pin, 1/8 x
7/16"
Armature
Crank Arm Assembly
Set Screw, 10-32 x
1/4"
Extension Spring
Divertor Cable
A-19638-2
Knife & Diverter Assy.
20-8712-25
"E"-Ring,
1/4"
Shaft
4700-00027-00 FW, 114x 1/2 x 21ga.
2-25
