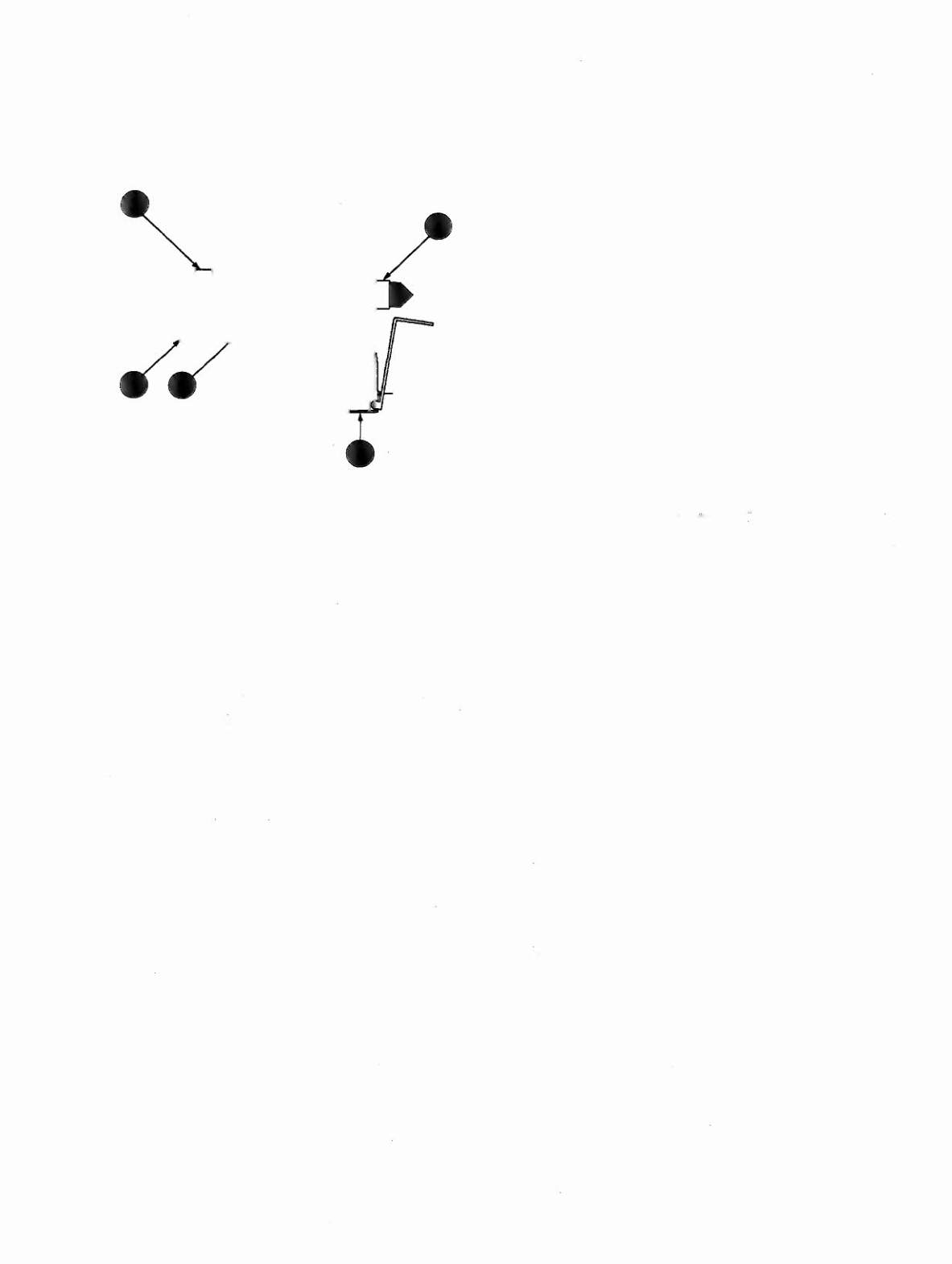

A-14125
Head Mouth Assembly
7
Item Part Number
Description
4
1 A-14135
Coil Switch Bracket Assy.
2 A-14134
Bell Armature Assembly
3 23-6420
Rubber Grommet
4 03-7067-5
Tubing Coli
5 01-S-50S-T Solenoid Bracket
6 10-135
Spring
7 AE-30-2000
Coil Sub-Assembly
S 5647-12693-39 Mini Microswitch
9 4002-01105-06 Mach. Screw, 2-56 x
3/8
--0
10 Not Used
11 5070-09054-00 Diode, 1N4004
12 400S-01017-04 Mach. Screw, S-32 x
114
Note:
For Coil Assemblies A·14123 and A·14124, refer to diagram above
Item #S is the only one that changes.
A-14123
A-14124
Head-Right Eye Assembly
Head-Left Eye Assembly
Item Part Number
Description
Item Part Number
Description
1 A-14135
Coil Switch Bracket Assy.
1 A-14135
Coil Switch Bracket Assy.
2 A-14134
Bell Armature Assembly
2 A-14134
Bell Armature Assembly
3 23-6420
Rubber Grommet
3 23-6420
Rubber Grommet
4 03-7067-5
Tubing Coil
4 03-7067-5
Tubing Coil
5 01-S-50S-T
Solenoid Bracket
5 01-8-50S-T
Solenoid Bracket
6 10·135
Spring
6 10-135
Spring
7 AE-30-2000
Coil Sub-Assembly
7
AE-30-2000
Coil Sub-Assembly
S 5647-12693-4S Mini Microswitch
S 5647-12693-47 Mini Microswitch
9 4002-01105-06 Mach. Screw, 2-56 x
3/S
9 4002-011"05-06 Mach. Screw, 2-56 x
3/S
10 01-10112
Switch Bracket Adjustment
10 01-10112
Switch Bracket Adjustment
11 5070-09054-00 Diode, 1N4004
11 5070-09054-00 Diode, 1N4004
12 400S-01017-04 Mach. Screw, S-32 x
1/4
12 400S-01017-04 Mach. Screw, S-32 x
1/4
2-23
Coil Assembly
