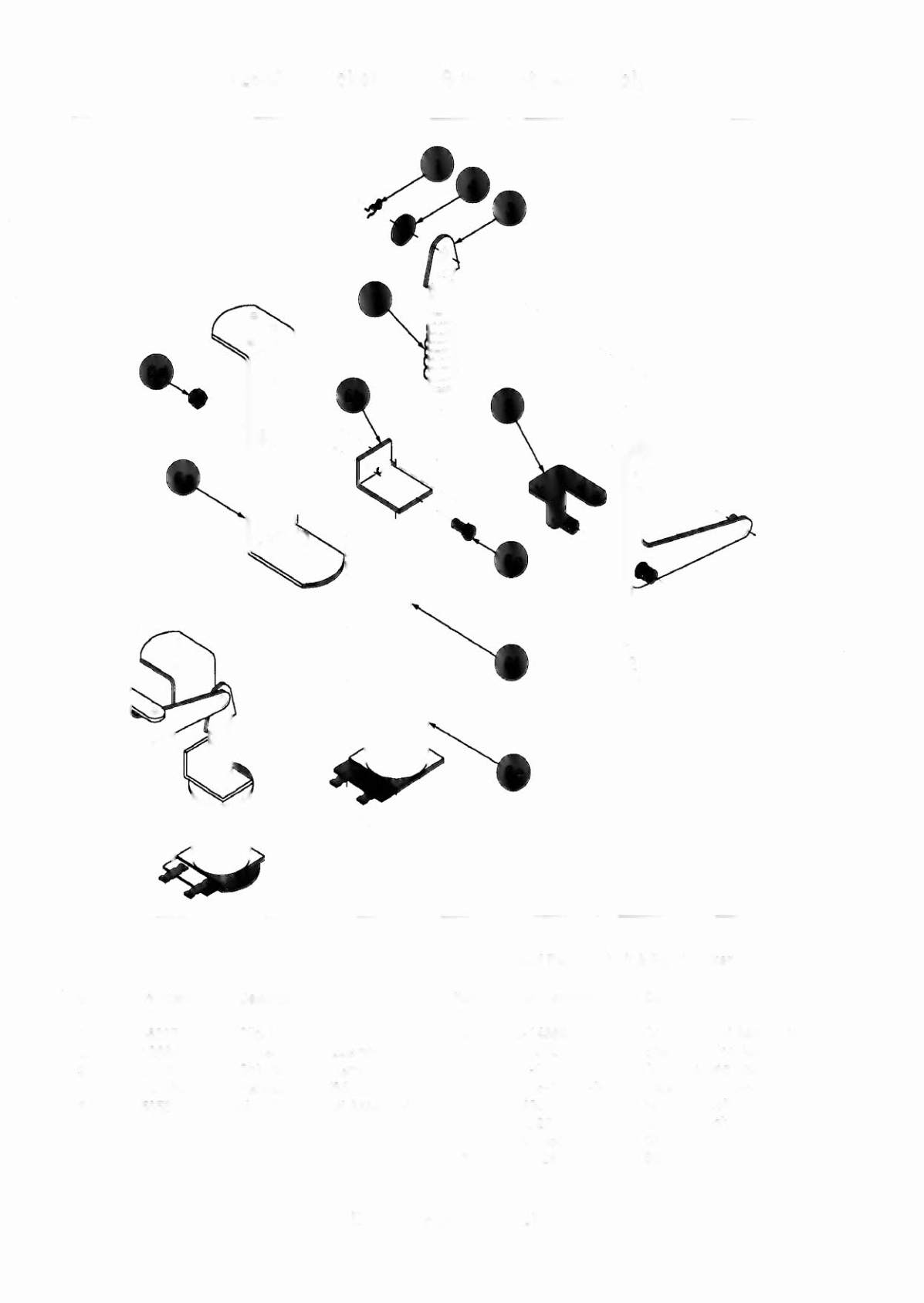

Kicker Arm (Slingshot) Assembly
.••.. .••.. .••.. .••.. .••.. .••.. .••.. .••.. .••.. .••.. .••..
" "
.••..
"
.•. .•.
"
"". ". ".
".'"
".
. •.
-, -,
<,
2
Associated Parts for Left
&
Right Kicker
Item Part Number
Description
Item Part Number
Description
1.
12-6227
Clip, Hairpin
6.
B·14369-L
Coil & Bracket Assembly
2.
A-12664
Kicker Crank Assembly
a) B-7572-1
Bracket & Stop Assembly
3.
A-51 03
Coil Plunger Assembly
b) 01-8-508-S
Coil Retaining Bracket
4.
4700-00030-00 Flatwasher, 17/64 x 1/2 x 15ga.
c) 4006-01017-06
Mach. Screw, 6-32 x 3/8
5.
A-5653
Mounting Bracket Assembly
d)
4406-01119-00
Nut, 6-32 ESN
e) AE-27-1200
Coil Assembly
1)
03-7066
Coil Tubing
7.
10-128
Spring
The ADDAMS FAMILY 2-21
