MAINTENANCE INFORMATION

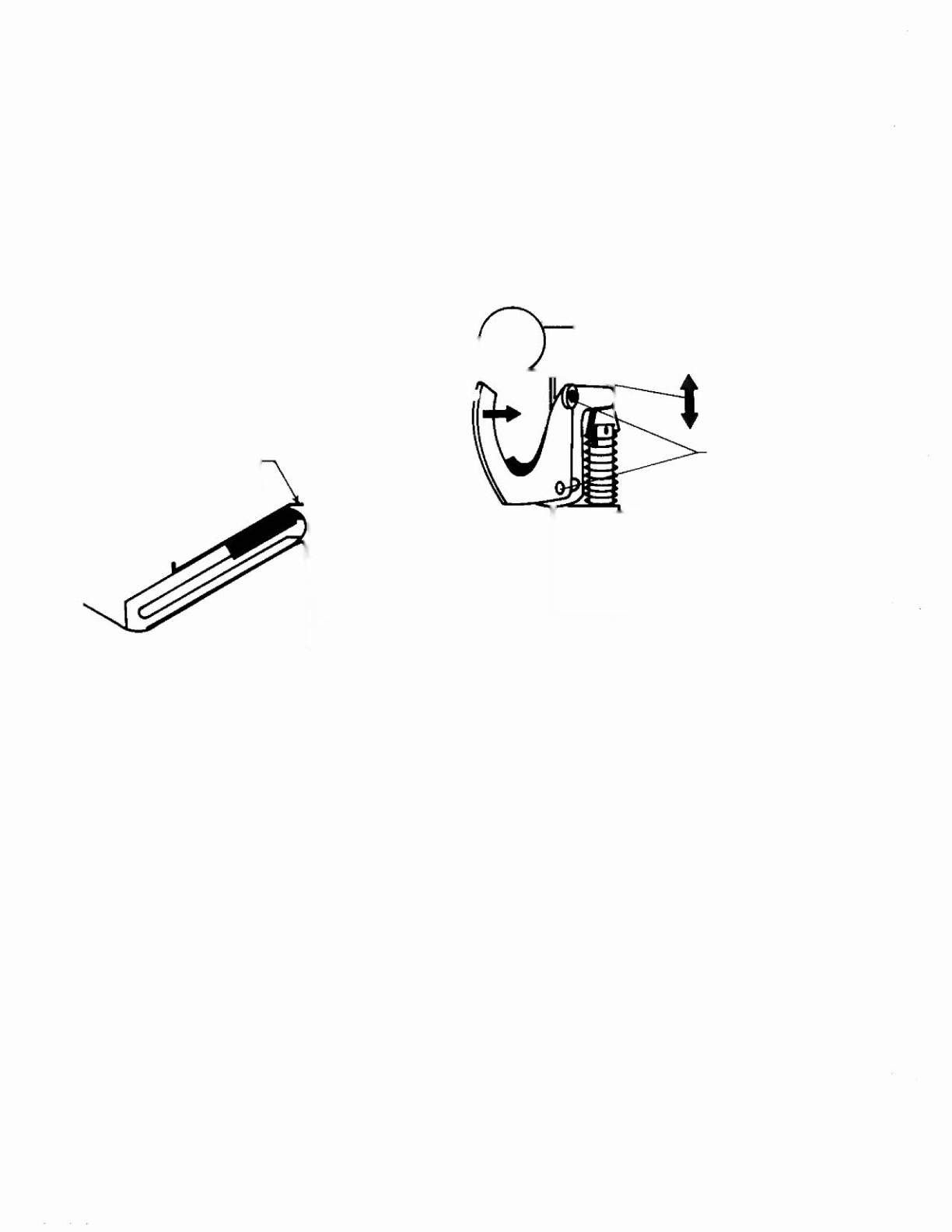

Figure 3 shows the two main lubrication points of the Shooter Lane Feeder. The shaded arrows show
the directions in which the Shooter Lane Feeder and other parts of its related assemblies can be
adjusted for proper operation. Note that the mechanisms of the Top Eject Hole Arm Assembly and
the Right Lock (Eject Hole) are quite similar to the Shooter Lane Feeder; they have the same
lubrication requirements and adjustment capabilities as the Shooter Lane Feeder.
LUBE
POINTS
TOP VIEW
Figure 3. Adjustments and Lubrication Points, Shooter Lane Feeder.
Because of the functional design (arm-actuated via solenoid plunger operation), the pivot points of
the Left and Right Kickers ("Slingshots") and the Spinout Kickbig all require lubrication as a regular
servicing procedure. Mechanical adjustments are simple and somewhat similar to the Shooter Lane
Feeder. These mechanisms should also be checked for proper fit (snugly tight) where they attach to
the playfield.
Lubrication to ensure proper operation also applies to the target blades of the two 3-Bank Drop
Targets. Regular maintenance is essential to a game's continuing contribution to the operator's
earnings.
