B-9414-3

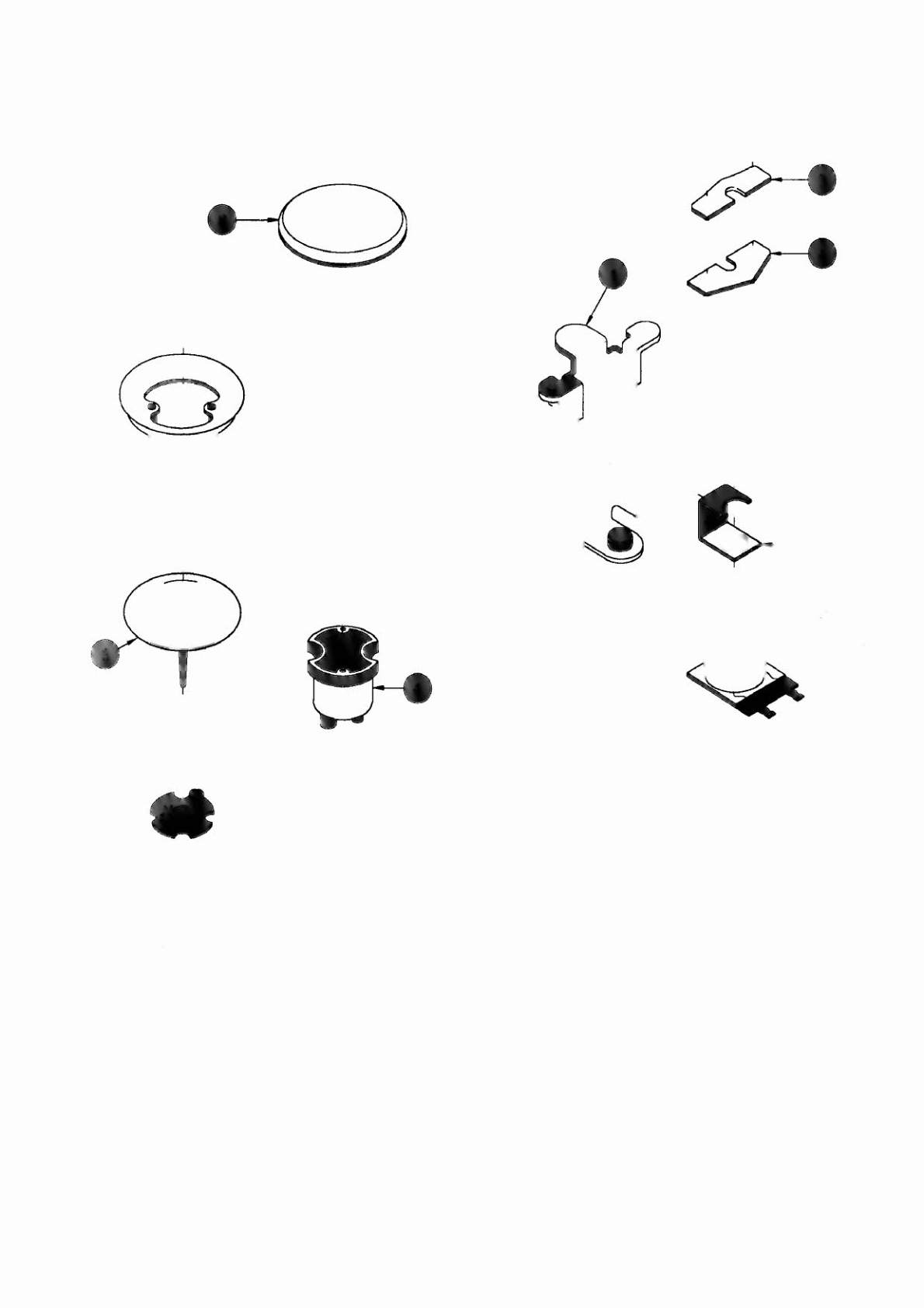

Jet Bumper Assembly
t',
I -,
I
.••.
I
.••..••.
I
.••..••.
''I
I
I
I
I
I
I
I
I
I
I
I
l....
,
,
"
........ I
....'1
I
0---@
I
0--~
A-941 5-2
Jet Bumper Coil Assembly
I
~
.
I
I
I
~
r
Item Part Number
Description
Item Part Number
Description
1.
A-4754
Bumper Ring Assembly
1.
B-7417
Bracket
&
Stop Assembly
2.
03-6009-A5
Bumper Base, White
2.
01-1747
Coil Retaining Bracket
3.
03-6035-4
Bumper Wafer, Red
3.
01-5492
Armature Link, Steel
4.
03-7443-5
Bumper Body, White
4.
01-5493
Armature Link, Bakelite
5.
10-7
Spring
5.
02-3406-1
Coil Plunger
6.
24-8776
Socket - Wedge Base
6.
10-326
Armature Spring
7.
24-8768
Bulb #555 (6.3V., O.25A.)
7.
AE-26-1200
Coil Assembly
8.
4006-01017 -04 Mach. Screw, 6-32 x 1/4"
Associated Parts:
9.
03-7066
Coil Tubing
8.
03-8254-9
Jet Bumper Cap (Tr. Red)
