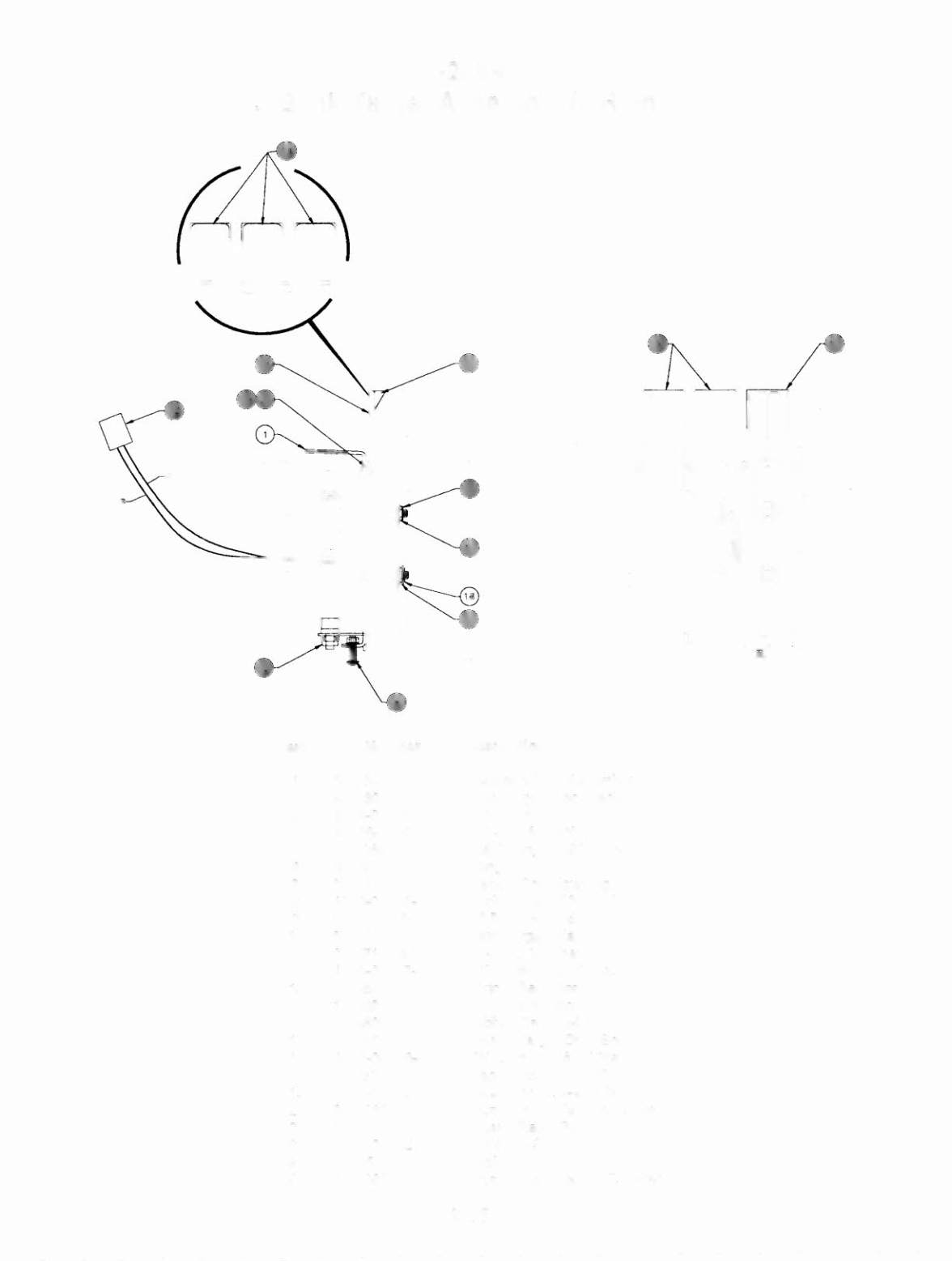

3-Sank Target Assembly (2 Ramp)
Item Part Number
1 04-10403
2 A-11397
3 4408-01119-00
4 AE-26-1200
5 03-7066-4
6 02-3972-1
7 01-8413
8 4010-01025-14
9 20-8712-18
10 03-8749
11 20-8712-25
12 4700-00072-00
13 10-364
14 10-392
15 23-6626
16 A-13609
17 4700-00016-00
18 03-8334-3
19 4004-01 005-04
20 20-10318
21 01-11769
22 4410-01132-00
23 H-19523
24 03-10318
19
Description
Bracket & Post Assembly
Drop Target Stop Bracket
Nut #8 ESN
Coil Sub-Assembly
Coil Tubing, 2.093" Long
Plunger
Bracket Coil Mounting
Mach. Screw, 10-32 x 7/8"
"E"-Ring, 3/16" Shaft
Plain Target, Black (1)
"E"-Ring,
1,14"
Shaft
FW, 17/64 x ~ x 21ga.
Spring, Retractor
Spring, Extension
Rubber Grommet
3-Bank Target Opto Board
FW, 3/16 x 7/16 x 17ga.
Traget Stop, 3-15/16"
Mach. Screw, 4-40 x
)!4"
Drop Target Prism Foil, Silver
3-Bank Reset Plate
Nut #10 ESN
Cable
Drop Target Prism Foil, Silver
2-25
- - - - - -
- - - - - - - -
- - - - - - - -
