4) Dislodge the Coil Armature Bracket from the Pivot Arm teeth. This will allow the
Target to snap to it's forward-most position.
5) Loosen the screw on the Arm Stop Bracket.
6) Adjust bracket so that the top edge of the Upper Interrupter "Finger" is even with the
top edge of Opto 3.
IMPORTANT: Opto path must be completely broken.
7) Tighten all screws. Target Assembly is now adjusted.

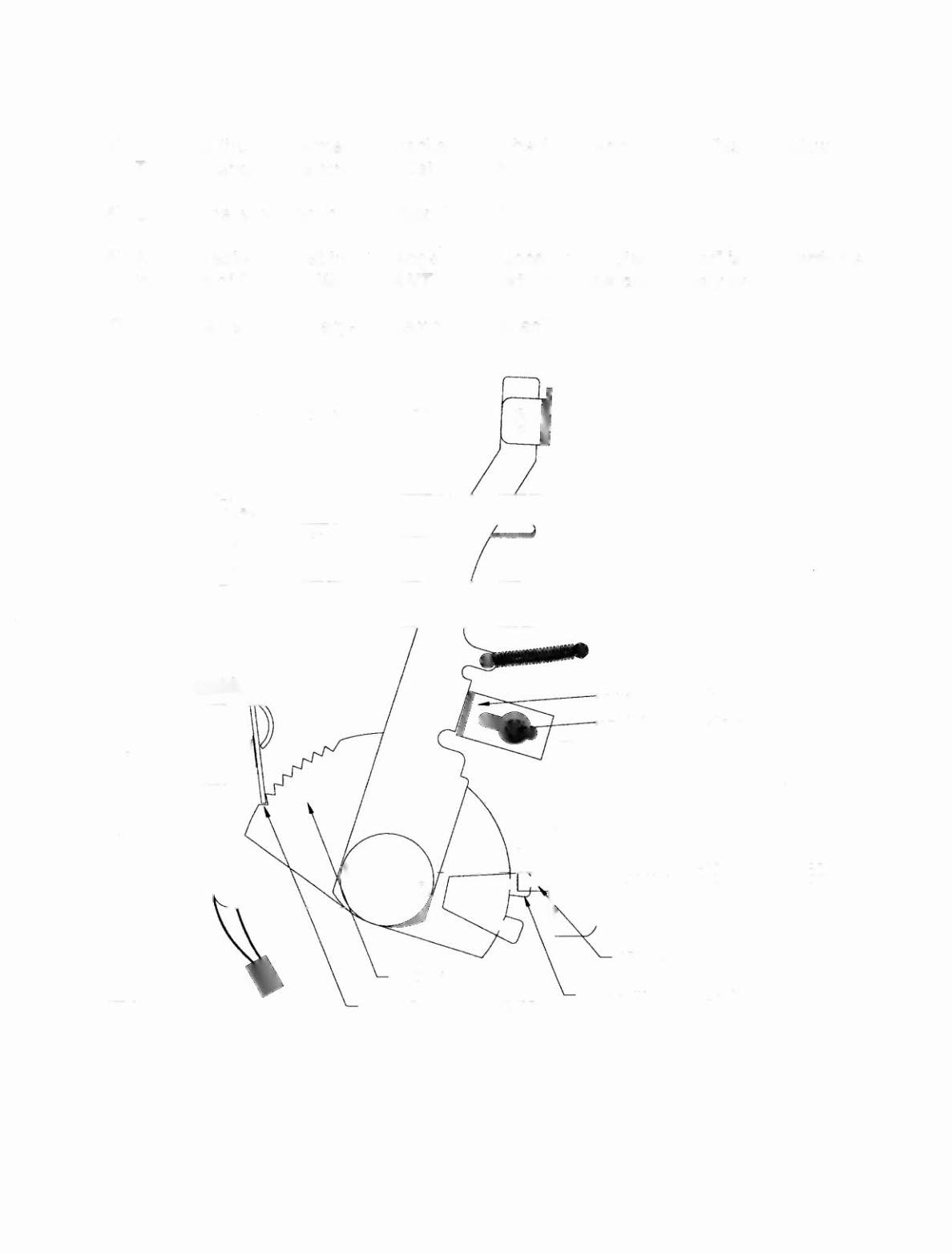

OPTO 3
::::::::::::'"'-<-----r-
ARM STOP BRACKET
fln:i.J...--I---r-
ARM STOP SCREW
UPPER INTERRUPTER "FINGER" IS
EVEN WITH TOP EDGE OF OPTO 3
PIVOT ARM
COIL ARMATURE BRACKET
UPPER INTERRUPTER "FINGER"
1-53
