Page 78 - Road Show

Basic HTML Version

A-17811

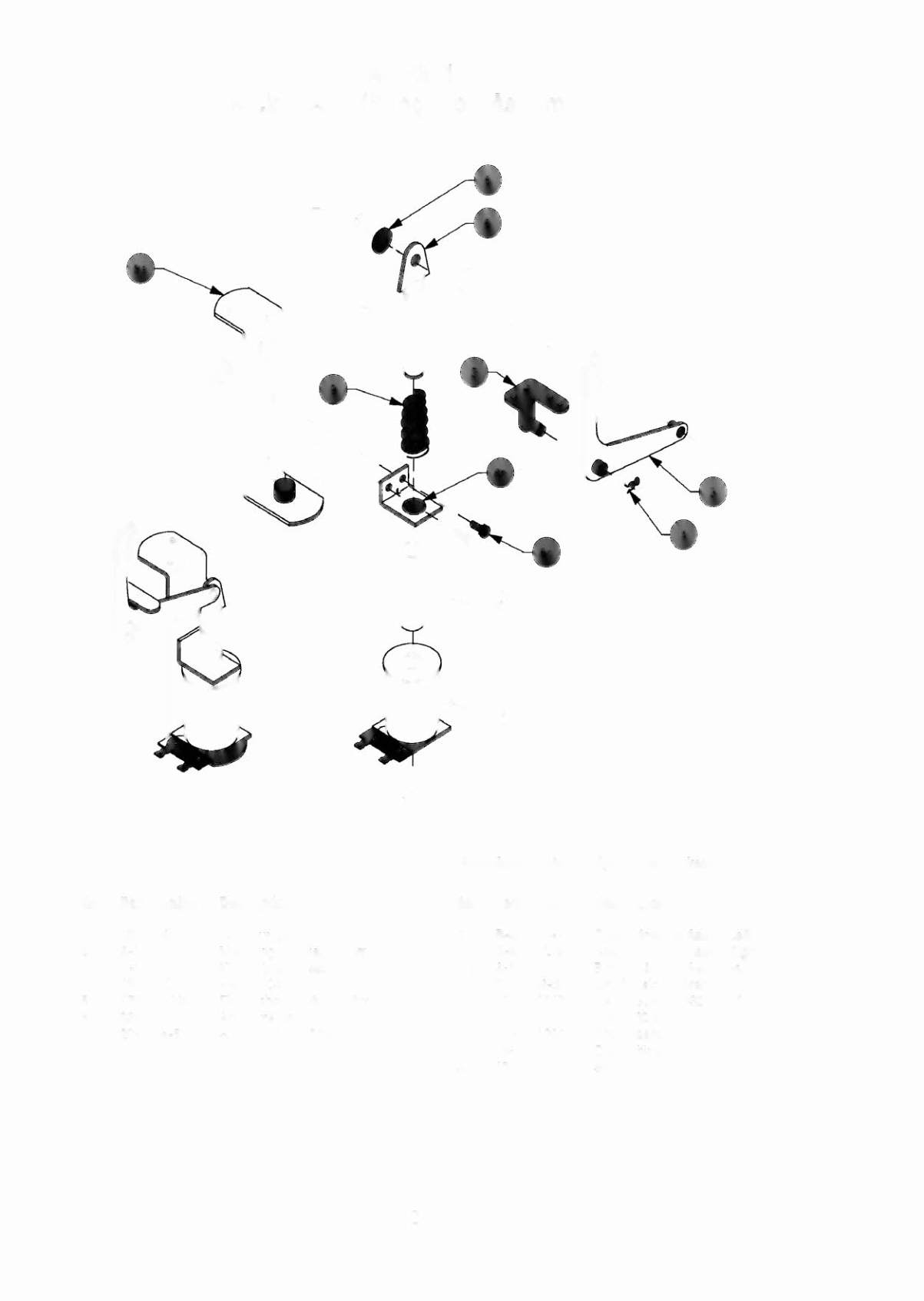

Kicker Arm (Slingshot) Assembly
Associated Parts for Right & Left Kickers:
Jmm
part Number
Descriptjon
Jkm
part Number
Description
1.
02-2364
Coil Plunger
8.
B-9362-R-3
Coil & Bracket
Assy.,
Left
2.
A-1781O
Mounting Bracket Assembly
B-9362-L-2
Coil & Bracket
Assy.,
Right
3.
A-12664
Kicker Crank Assembly
a) A·17808
Bracket & Stop Assembly
4.
12·6227
Hairpin Clip
b) 01-8-508-S
Coil Retaining Bracket
5.
4700-00030-00 Flatwasher,
17/64 x 1/2 x 15ga.
c) 4006-01017-06 Mach. Screw, 6-32 x 3/8"
6.
03·8085
Armature link
d) 4406-01119-00 Nut, 6-32 ESN
7.
20-8716-5
Roll Pin, 1/8 x 7/16"
e) AE-26-1200
Coil Assembly
f)
03-7066
Coil Tubing
9.
10-128
Spring
