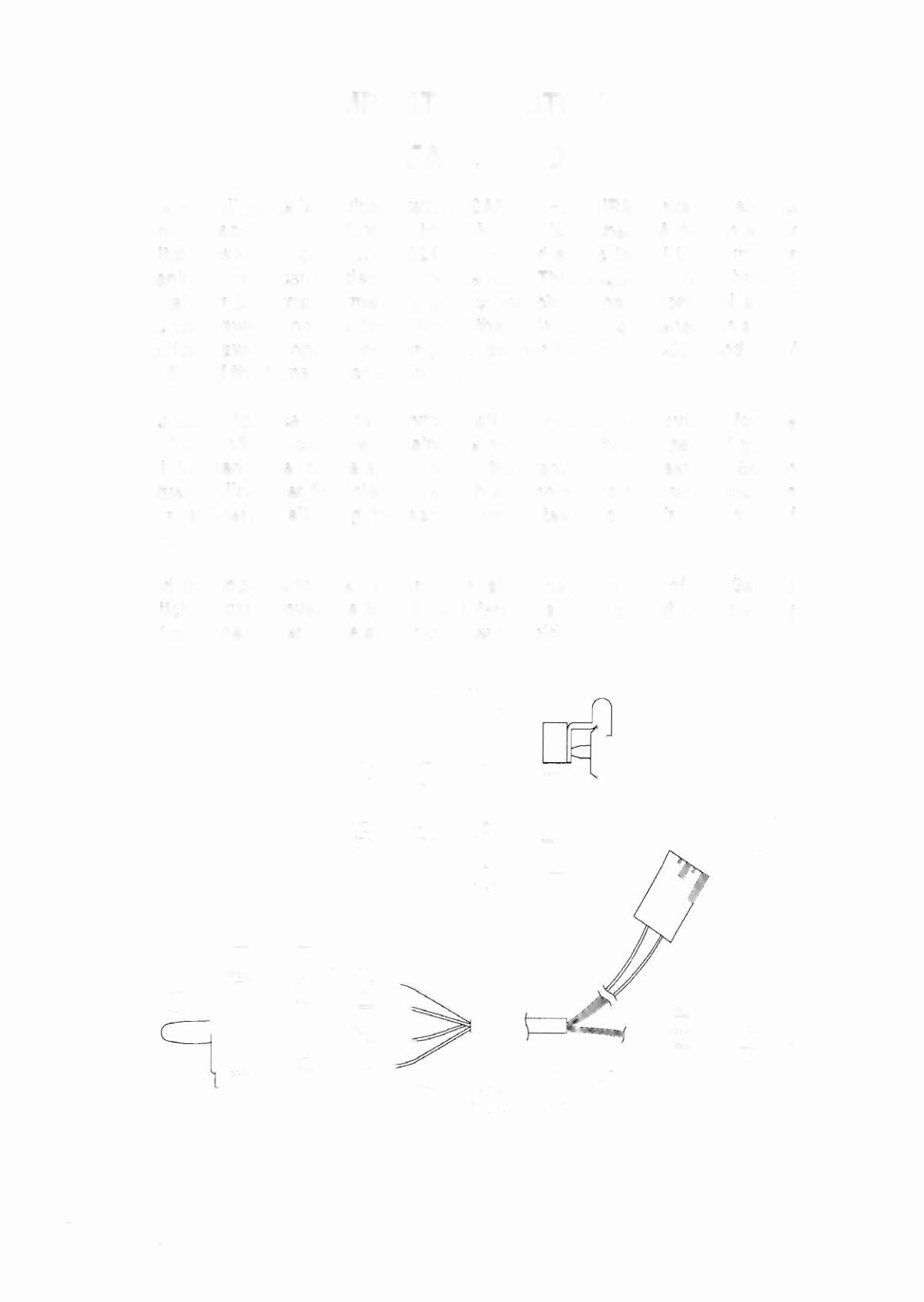

IMPORTANT NOTICE
PLEASE READ
This pinball game is equipped with a SAFETYFEATUREto prevent shocks
from the solenoid circuit when the coin door is opened. A new interlock
switch assembly (part no. A-18249-1),located at the left of the coin door
opening, has been added to the game. This assembly is a bracket
containing the existing memory protect switch on the bottom and a new
Interlock switch on the top. When the coin door is opened, this new
Interlock switch opens, breaking the connection to the +50V and +20V
winding of the transformer secondary.
A special tool called the Service Switch Actuator is provided for the
serviceman/technician that repairs the game. This tool is painted yellow
and located in a bag stapled inside the cabinet. The service Switch
Actuator slips over the interlock switch and holds it closed while the coin
door is opened, allowing the serviceman to test and repair the solenoid
circuit.
Hold the top interlock switch in, then slide the short end of the Service
Switch Actuator over the top of the interlock switch bracket and the long
end over the center of the switch plunger to hold it in.
SERVICE SWITCH ACTUATOR
(0 1~ 11791)
WHT-RED (92C)
MEMORY PROTECT SWITCH
(5643~09268-00)
-----------j
BRACKET
(01-12676)
WHT-RED (928)
6LK-YEL (048)
~
INTERLOCK SWITCr ASSEMBLY
~(A-18249-1
)
(A-18249-2,
JAPAN ONLY)
