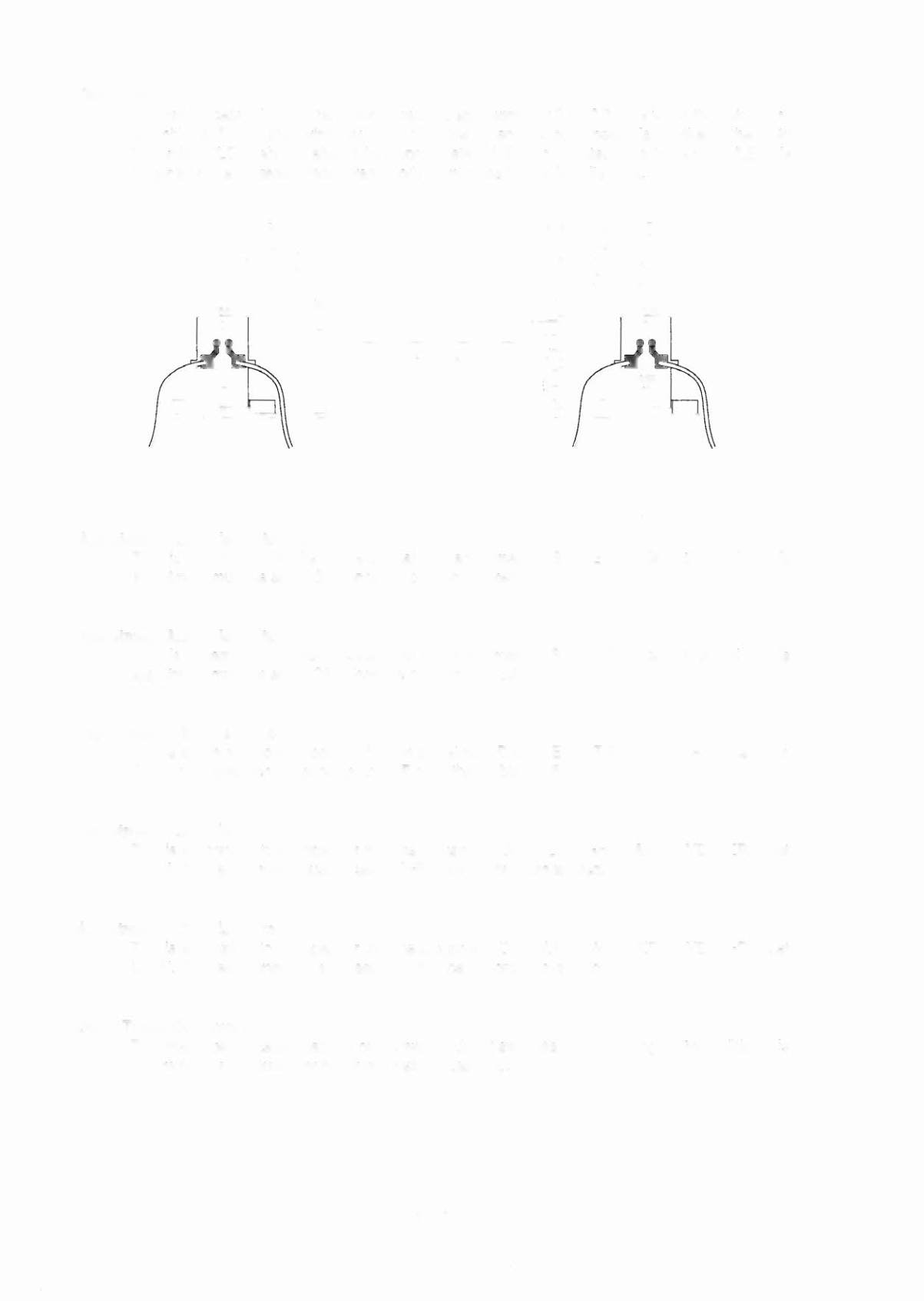

Opto Theory
The opto receiver (Photo Transistor) should be approximately 0.1 - 0.7 volts when the opto beam
is unblocked and approximately 11 - 13 volts when the opto beam is blocked. The opto
transmitter (LED) should always be approximately 1.4 volts.
Note:
The transmitter (LED) is
larger than the receiver (Photo Transistor); it protrudes further from its case.
LED Board
Transmitter
1.0-1.
Valls
Photo Transi tor
Board
Receiver
0.1-0.7V
Unblocked
11-13V Blocked
Infrared Ray
Green
o
WHT
Gray
Black
White
Green
Adjustment A.2 20 is set to ON.
This is a reminder to the operator that the adjustment DISABLE TED is set to ON. This
adjustment must be set to OFF once the problem is fixed.
Adjustment A.2 21 Is set to ON.
This is a reminder to the operator that the adjustment DISABLE RED is set to ON. This
adjustment must be set to OFF once the problem is fixed.
Adjustment A.2 22 is set to ON.
This is a reminder to the operator that the adjustment DISABLE LEFT RAMP DIVERTER is set to
ON. This adjustment must be set to OFF once the problem is fixed.
Adjustment A.2 23 is set to ON.
This is a reminder to the operator that the adjustment DISABLE RIGHT RAMP DIVERTER is set
to ON. This adjustment must be set to OFF once the problem is fixed.
Adjustment A.2 24 is set to ON.
This is a reminder to the operator that the adjustment DISABLE LOWER LEFT DIVERTER is set
to ON. This adjustment must be set to OFF once the problem is fixed.
Dozer Timed Out Error
This message indicates that one or the two bulldozer switches is not working, or the bulldozer is
obstructed, or the bulldozer motor is physically disabled.
1-42
