5002S-CAB

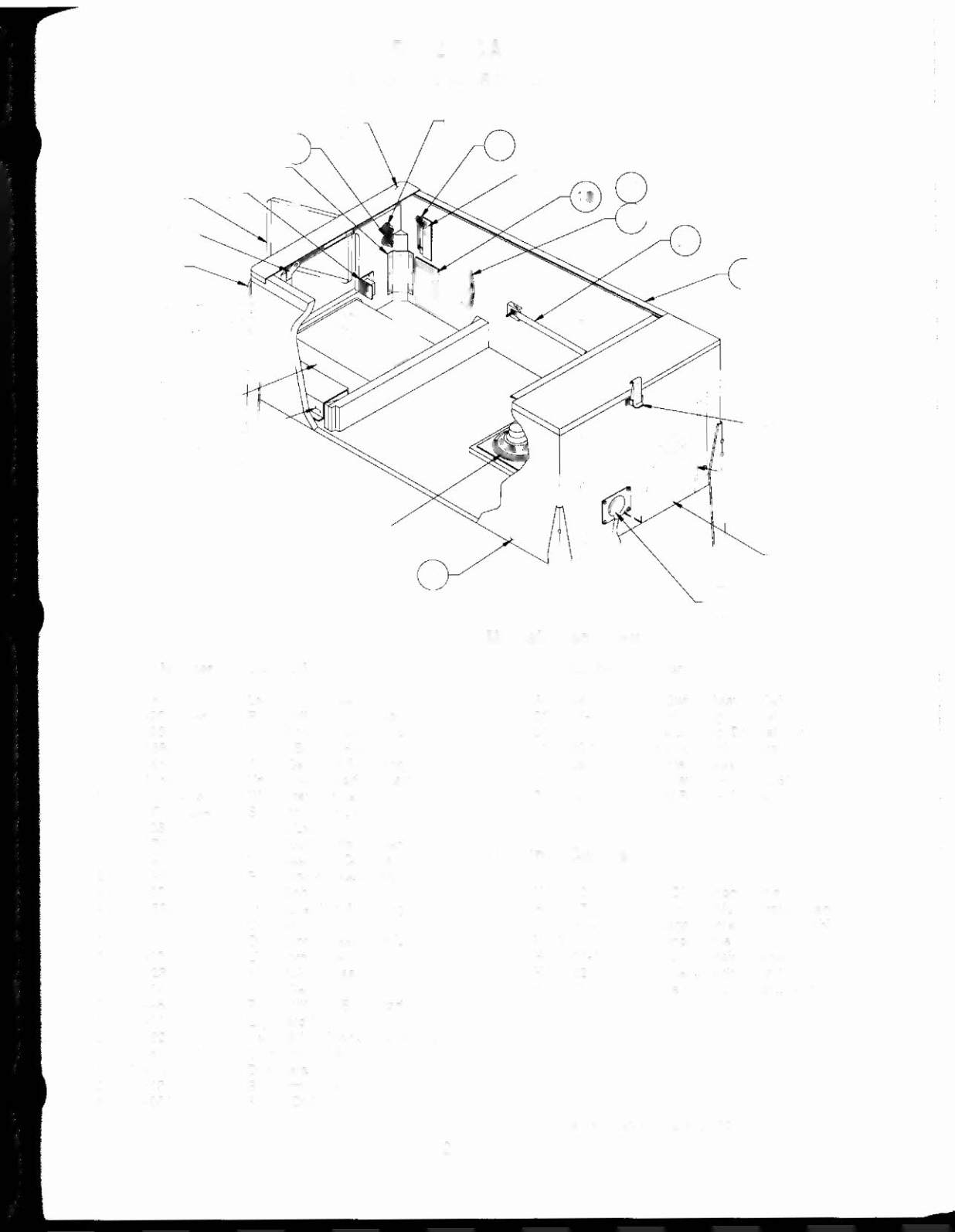

Cabinet Assembly
@ @
4
0-
0)
19
Miscellaneous Parts
Item Part Number
Description
A-16773-1
Lever Guide Assembly
2 20-9663-B-8
Push Button Round,
No Fear
3 20-9663-18
Push Button w/Sw.,
Extra Ball
4 A-16883-4
Flipper Button, Red (2)
5 A-18531-1
4-Ball Cashbox Assembly
6 A-17540
Univ. Power Interface Assy.
7 5610-14515-00
WPC Transformer
8 5555-12929-00
Speaker, 412,6", 25w
9
20-9347
Toggle Latch
10 A-17051-1
Coin Door Interface Board
11 A-19514
Leg Assembly, Chrome
12 0-12615
Front Molding Assembly
13 20-6502-A
Plum Bob
14 A-15361
Tilt Mechanism Assembly
15
Cordset
16 A-17316
Opto Flipper Assembly (2)
17 01-10714
Line Cord Cover
18 A-12359-3
Side Molding Assembly (2)
19 11-1230
Wood Cabinet
20 20-9663-1
Push Button w/Sw.,
Start
21 01-11400
Leg Plate (4)
22 A-18249-1
Cable & Interlock Switch Assy.
23 09-61000-1
Coin Door-USA
24 01-13617
Drip Plate
25 01-13916.3
Stay Arm Tube
26 03-9366.1
Switch Disk
2-3
Part Number
Description
A-17195
01-9011-L
01-9011-R
01-6389-1
08-7028-T
08-7377
20-6500
Tilt Switch Assy. w/Cable
Backbox Mtg. Bracket, Left
Backbox Mtg. Bracket, Right
Cashbox Lock Bracket
Playfield Glass
Leg Leveler Adjuster, 3"
Steel Ball,
1-1/16" (4)
Cabinet Cables
H-16810
H-17217
H-17837-2
H-19524
H-19601-1
H-20162
A-20201
50V Disconnect Cable
Plumb/Bob Mech. Protect Cable
Voltage Program Jumper Cable
Cabinet Cable
Power Extension Cable
Cabinet Switch Lamp Cable
Cable & Jumper Assy., Coin
Door
*
See Application Chart p.2-29.
