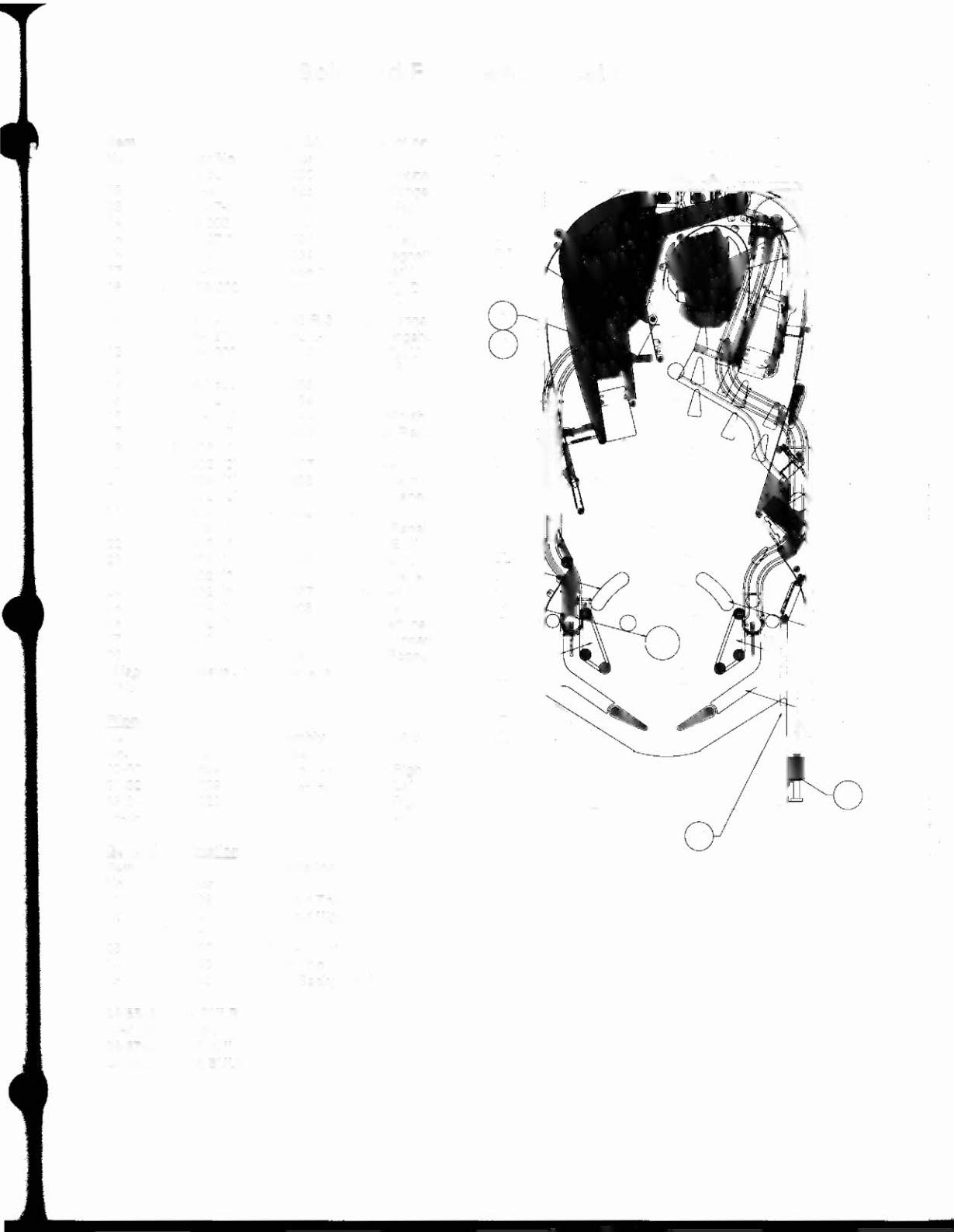

Solenoid/Flashlamp Locations
Item Coill
Assembly Description
@-
No.
Flasher No.
Number
01
AE-23-800
A-19965
Right Popper
02
AE-23-800
A-14525
Auto Plunger
03
20-10197-2 A-20034
Right Magnet"
04
AE-23-800
B-11873
Kickback
05
20-10197-1
A-20034
Centr Magnet"
06
20-10197
A-20034
Left Magnet"
07
AE-23-800
A-10686-1
Knocker"
OB
SM1-26-S00 A-20202
Drop Tgt Down
09
NOT USED
10
AE-2S-1200 B-9362-R-3 Right Slingshot
11
AE-26-1200 B-9362-L-2 Left Slingshot
12
AE-26-1200 A-20202
Drop Tgt Up
13
NOT USED
14
AE-2S-1500 A-19663
Trough
15
AE-27-1200 A-20134
Eject
16
SM-30-1100 A-20144
Skull Mouth
17
24-8704 (2)
A-17983
Flipper Return
18
24-8802 (1)
C-13337
Spinner
19
24-8802 (2)
C-13337
No Fear
20
24-8704 (1)
A-17983
Right Ramp
24-8802 (2)
Insert Panel
21
24-8802 (2)
A-17802
Skull
24-8802 (1)
Insert Panel
22
24-8802 (1)
Insert Explode
23
24-8704 (1)
A-17983
Left Ramp
24-8802 (2)
Insert Panel
24
24-8802 (1)
C-13337
Top Left
25
24-8704 (2)
A-17803
Autofire
26
24-8802 (1)
Top Left Insert
27
24-8802 (1)
Top Rt Insert
28
24-8704 (1)
A-17983
Right Popper
"Magnets use wave spring washer #20-9612.
"Not
Shown.
FIi~~ers
Item Coil
Assembly Description
No.
Number
Number
(0)
29-30 FL-11629
A-14876-R-3 Lower Right
31-32 FL-11629
A-15849-L-2 Lower Left
33-34 FL-11629
A-19945
Upper Right
35-36
NOT USED
General Illumination
Item Bulb
Decsription
No.
Number
01
24-8768
Playfield Top
02
24-6549
Playfield Right
24-8768
03
24-8768
Playfield Left
04
24-6549
Insert Title
05
24-6549
Insert Background
24-6549 = #44 BULB
24-8704
=
#89 BULB
24-8768 = #555 BU LB
24-8802 = #906 BULB
