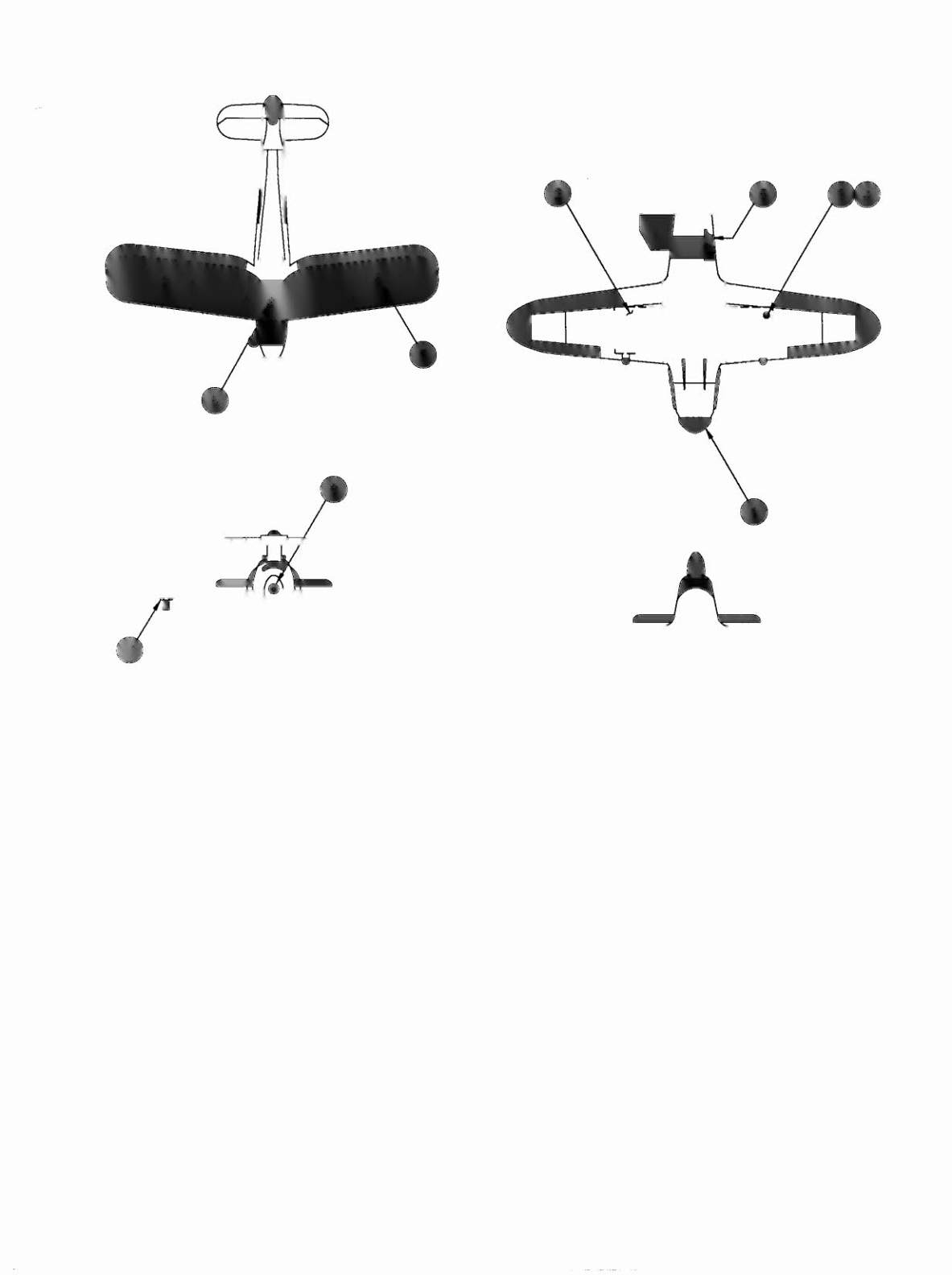

TOP YIEW
12
f-----f
t-----I13
FRONTYIEW
A-16709
Biplane Assembly
lliml
part Number
Description
1.
03-8903
Fuselage, Biplane
2.
03-8904
Wing, Biplane
3.
03-6047-15
Spacer, 1" Long
4.
03-6047
Spacer, 9/16" Long
5.
4006-01005-24 Mach. Screw, #6-32 x 1-1/2"
6.
4006-01005-16 Mach. Screw, #6-32 x 1"
7.
4406-01119-00 Nut, #6-32 Hex. ESN
8.
4006-01005-06 Mach. Screw, #6-32 x 3/8"
*
9.
31-1773-22
Playfield Plastic
10.
4700-00004-00 Flatwasher, 9/64 x 3/8 x 21gao
11.
12-7128
WireForm, Biplane
*
12.
31-1786-7
Decal, Plane
*
13.
31-1786-8
Decal, Plane
*
Not available for individual sale.
Order Decal Set 31-1786.
TOPYIEW
FRONTYIEW
c
A-16707
Fighter Plane Assembly
lliml
part Number
Description
1.
03-8902
Fighter Plane
2.
A-16834-1
2
LED
Flasher Assembly
3.
07-6688-20N Rivet, 1/8 x 1/4"
4.
4700-00003-00 Flatwasher, 1/8x 9/32 x 21ga.
*
5.
31-1786-9
Decal, Plane
• Associated Part:
6.
01-11665
Mtg. Bracket - Fighter Plane
INDIANA JONES 2-31
