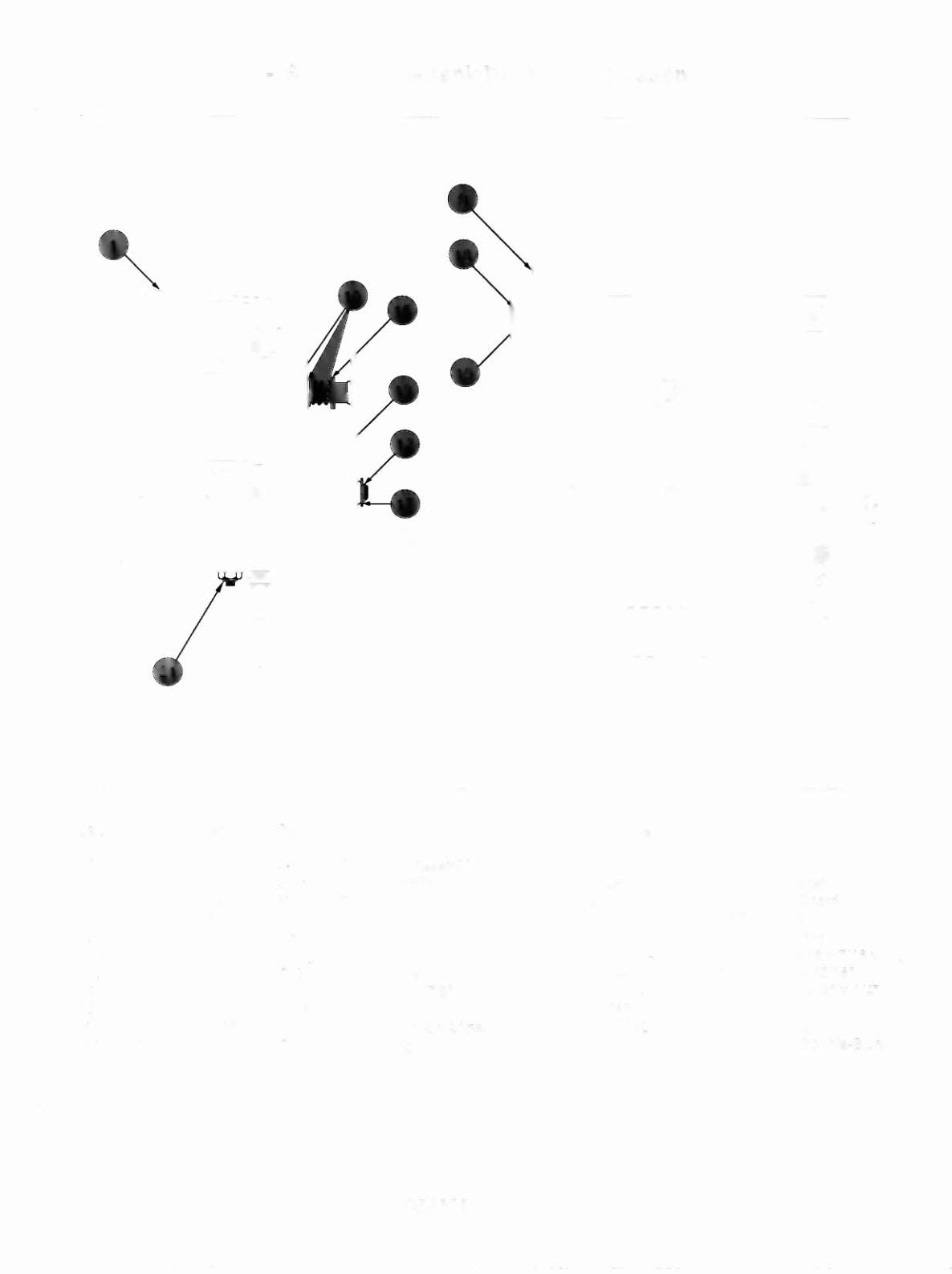

A-16032-2 3-8ank Drop Target Assembly
3 }--------...
15
13
4
f----____'
0000000
~
part
Number
Description
~
part
Number
Description
1.
A-17045
3-Bank Brkt. & Stud Assembly
12.
20-8712-18
Retaining Clip
2.
A-11397
Stop Bracket Assembly
13.
23-6626
Rubber Grommet
3.
4408-01119-00
Nut 8-32 ESNA
14.
A-13609
3-Bank Opto Board
4.
AE-26-1200
Coil Assembly
15.
20-8712-25
Retaining Clip
5.
03-7066-4
Coil Tubing
16.
10-364
Extension Spring
6.
01-3972-1
Plunger
17.
4700-00016-00
Flatwasher, 3/16 x 7/16 x 21 gao
7.
01-8413-1
Coil Mounting Bracket
18.
03-8334-3
Stop Target, 3-15/16"
8.
4010-01025-14
Mach. Screw, 10-32 x 7/8"
19.
4004-01005-04
Mach. Screw, 4-40 x 1/4"
9.
03-8750
Target
20.
01-11769
Reset Plate
10.
4700-00072-00
Flatwasher, 17/64 x 1/2 x 21 gao 21.
4410-01132-00
Nut #10 ESNA
11.
10-392
Compression Spring
22.
23-6622
Foam Taple, Double-Sided
INDIANA JONES 2-25
