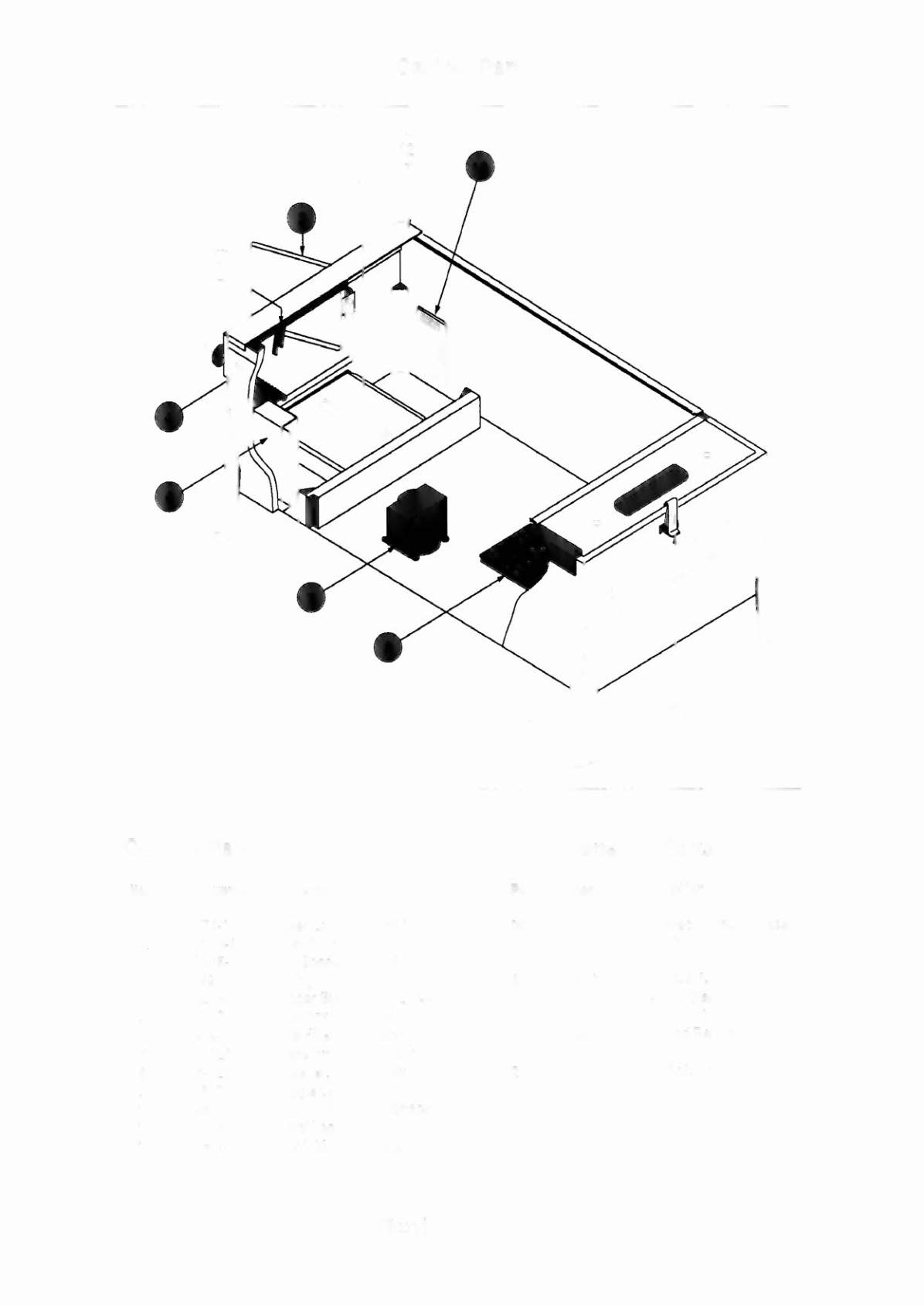

Cabinet Parts
Cabinet Parts
Item Part Number Description
1.
D-9174-2
Lever Guide Assembly
2.
A-14148-1 Coin Door - 2 Slot
3.
B-12445-1 Ball Shooter Assembly
a) 10-149
Spring
4.
B-12273-4 Flipper Button-Red (2 Used)
5.
A-14407-1 Cashbox Assembly
6.
A-14744-USA Line Filter Assembly
7.
5610-12835-00 Transformer, 115/230v
8.
5555·12929·00 Speaker,
4!l,
6", 25w
9.
20-9347
Toggle Latch
10. A-14689
WPC Coin Door Interface Bd.
11. C-10843
Metal Leg
12. D-12615
Front Molding Assy.
Hurricane
Miscellaneous Parts
Part Number
Description
08-7028-T
Tempered Playfield Glass:
21"
x
43"
A-8552-50012 Backglass Assembly
08-7456
Backbox Glass:
27" X 18-7/8"
31-1357-50012 Screened Backglass
20-6500
Steel 8all, 1-1/16" (3)
