Abbreviations:
C.W.
=
Clockwise direction
C.C.W.
=
Counter clockwise direction
Mini.
=
Mini-playfield

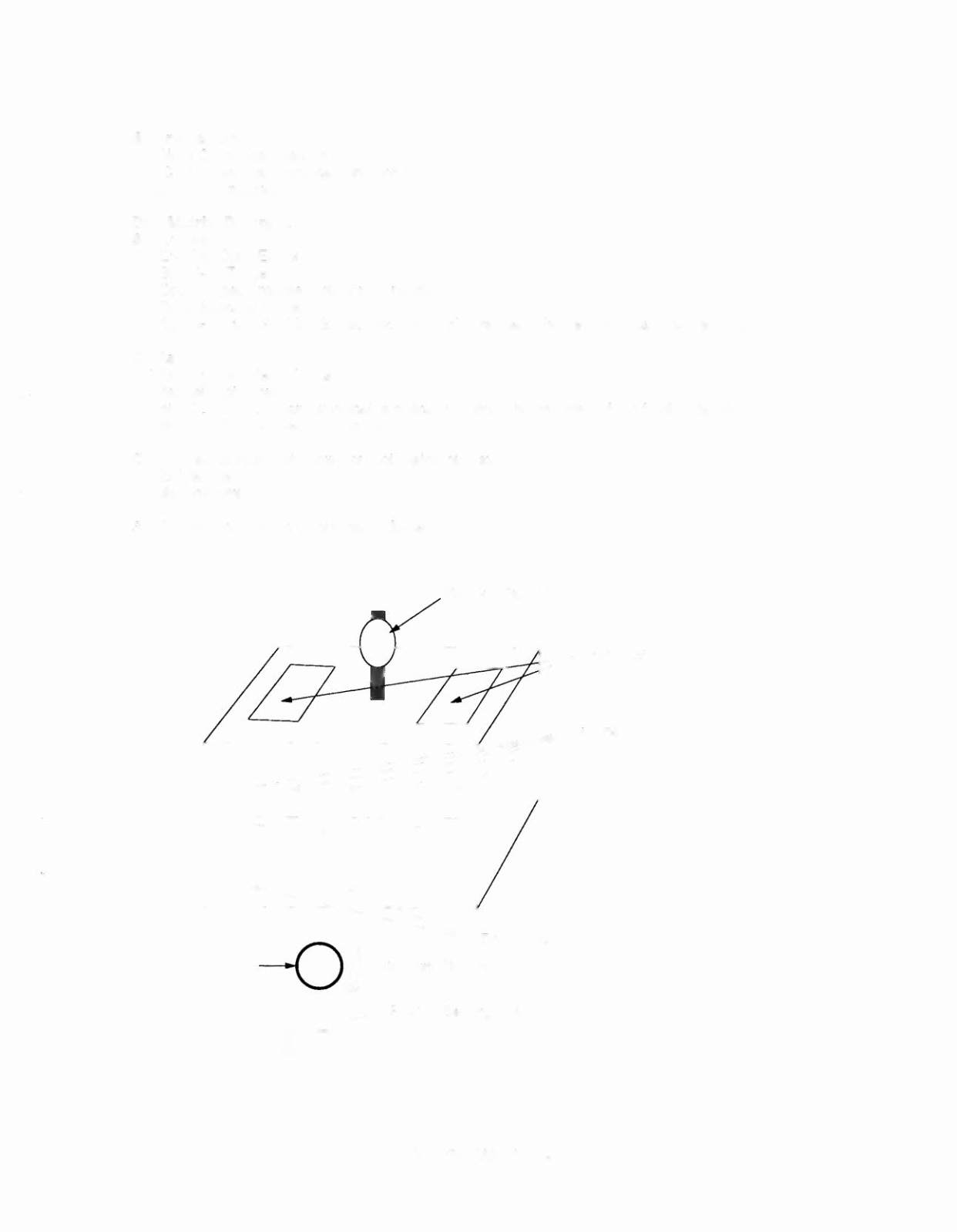

Dot Matrix Diagram:
Switches
2 Locking Opto Ejects
1 Stand-up Target
5 Opto Targets (middle level of mini-playfield)
3 Door Switches (on ramp)
1 Opto Playfield Position Sensor (bottom of picture, beam broken or transmitted/received)
Coils
2 locking opto ejects (not shown)
1 flasher (not shown)
Motor C.C.W.lC.W. (arrow indicates direction of wheel when viewed from front of game)
Motor onloff (on
=
filled in motor picture)
Controlled lamps
(not shown on dot matrix display)
2 lock lamps
1 Itte lock lamp
3 G.l.lamps (not shown on dot matrix display)
Stand-up Target
Opto Ejects
Door Switches
Motor---Q
J
MotorTurn Direction
~
Position Sensing Opto
I-a
DOCTOR WHO
1-21
