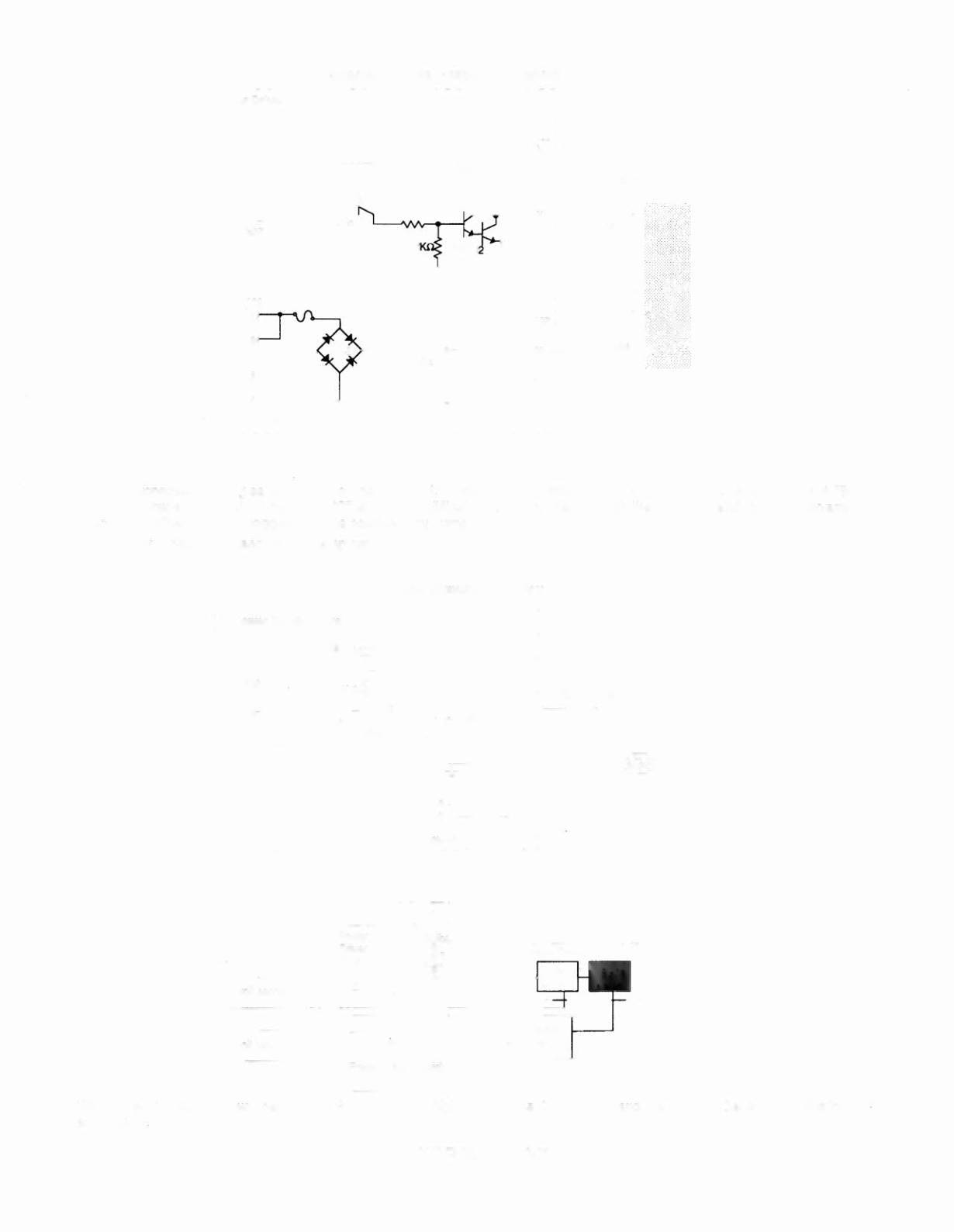

Special (General Purpose) Solenoid Circuit
r - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Power Driver Board
Drive
VCC
F/ashlamp·
Power
__ __ _ _ __ _ _ _ __ _ _ __ _ ___ ___ _ __ _ _ _J
The microprocessor toggles the output of the 74LS374. When point "A" drops low, point "8" is high. A high at point "8"
causes a low at point "G". When point "G" is low the coiVflashlamp is grounded through the transistor and the coiVflashlamp
turns On. When point "A" toggles high the coillflashlamp turns Off.
• Tieback Diode is not used for flashlamp circuit.
General Illumination Circuit
---------------------------1
I
Power Driver Board
I
G.I. LIghts
Xt---.---'
S.B
J115
~--~Xr_·L-------~
Power
I
Playfield
0-;-
i
- -- ~ I
Backbox.
I
I
Power
I
Up to 18 bUlb,.
I
Driver
II
Board
(Power Driver Board)
6.3 voll secondary
r---------j
Zero Cross Detection
Circuit
5 volt secondary
When point "A" toggles low, then points "8" and "G" are high. This turns On the triac and the desired General Illumination
string lights.
DOCTORWHO 3-7
