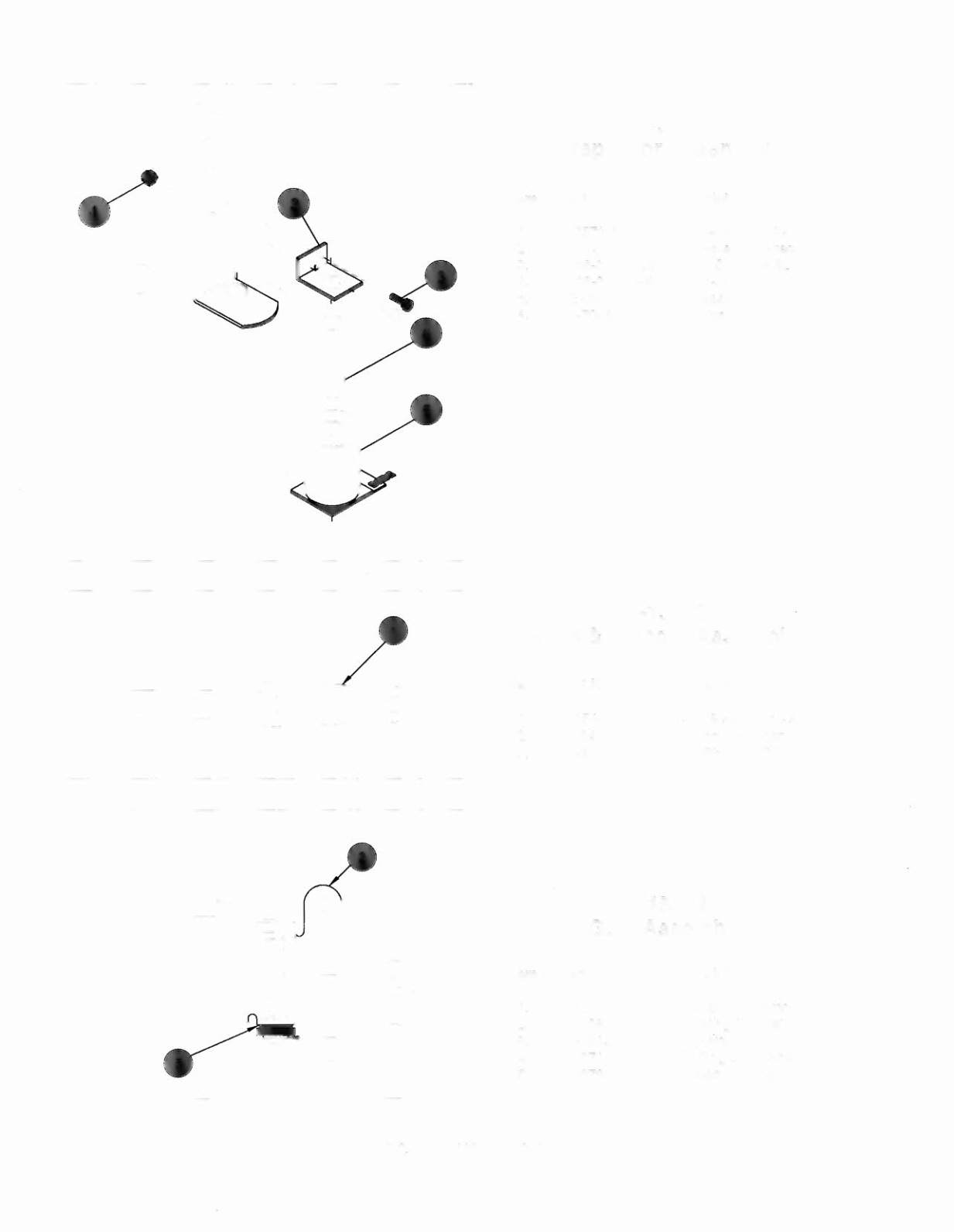

Trap Door Assembly
Item Part Number
1.
2.
3.
4.
5.
6.
B-7572-1
01-8-508-S
4006-01017-06
4406-01119-00
AE-26-1500
03-7066
Description
Bracket & Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32 x 3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
A-15442
Cam
&
Plunger Assembly
Item Part Number
Description
1.
2.
3.
A-15443
02-3407
20-8716-5
Cam & Stop Pin Assy.
Solenoid Plunger
Roll Pin 1/8 x 7/16"
A-15444
Gate Assembly
Item Part Number
Description
1.
A-15445
Gate Sub-Assembly
2.
01-10681
Mounting Bracket
3.
02-4619
Pin Pivot
4.
20-8712-18
"E"-Ring 3/16" Shaft
5.
20-8790-1
Nylined Bearing
