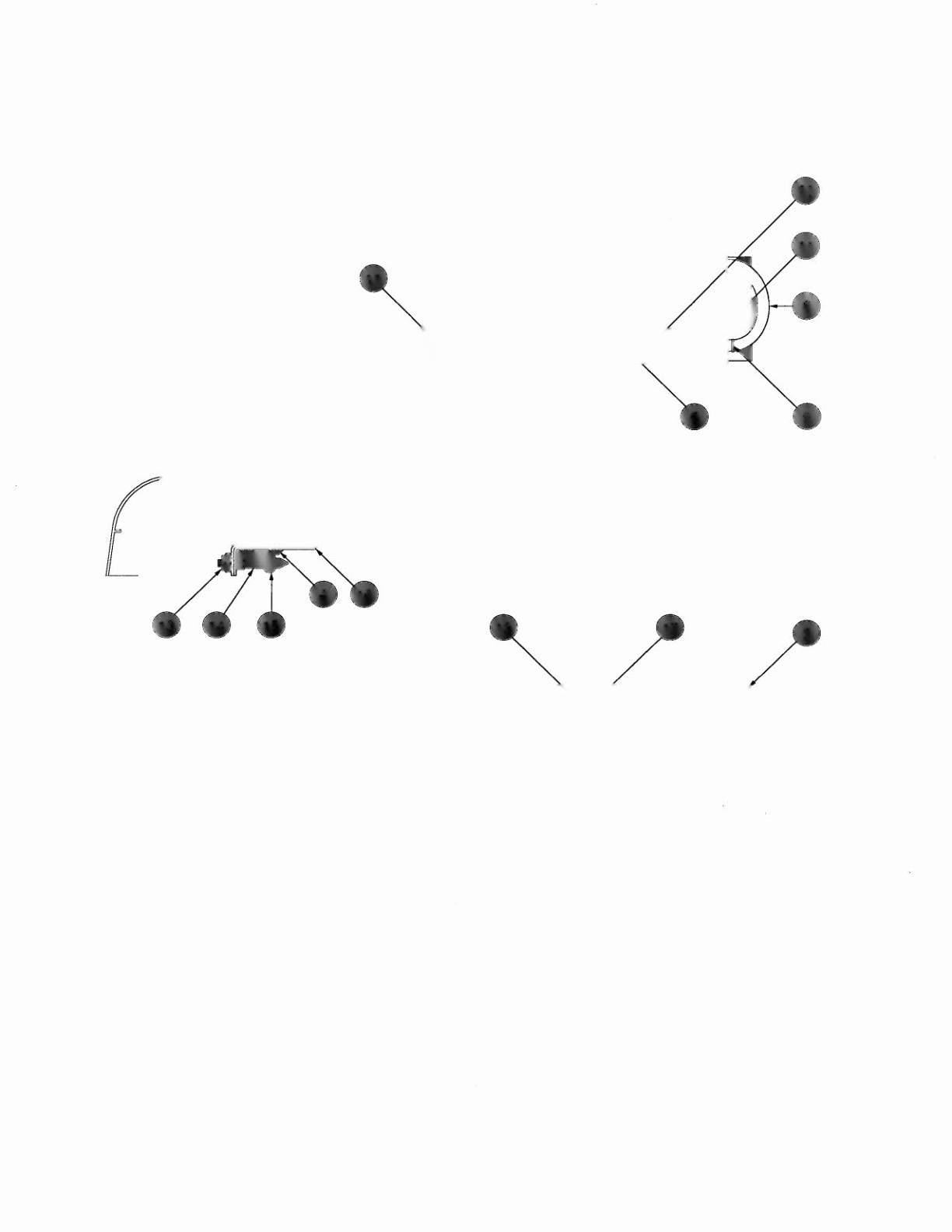

A-15356 3-Door Assembly
BACKYIEW
3
18
Item Part Number
Description
1.
A-15354
Ball Return Assembly
2.
01-10640
3-Door Bracket
3.
01-10811
Nut Plate 6-32
4.
4006-01027-05
Mach. Screw, 6-32 x 5/16"
5.
07-6688-17N
Rivet, 1/8 x 5/32 Long
6.
4700-00003-00
Flatwasher, 1/8 x 9/32 x 21ga.
FRONT VIEW
7.
01-10641
Plate Door Release
8.
02-4618
3-Door Shaft
9.
20-8790-1
Nylined Bearing
10.
10-391
S~ring
11.
20-8712-18
Truarc "E"-Retaining Ring
12.
03-6047-15
Tubing 1" Long
13.
03-8658
3-Door Target
14.
02-4177
Ball Guide Post
15.
23-6535
Ball Guide Post Bumper
16.
01-10810
3-Door Support Bracket
17.
31-1685-2
Decal
18.
4408-01119-00
Nut 8-32 ESN
19.
4700-00021-00
Flatwasher, 13/64 x 7/16 x 21ga.
20.
03-6047-20
Spacer, 31/32" Long
DOCTOR WHO 2-32
