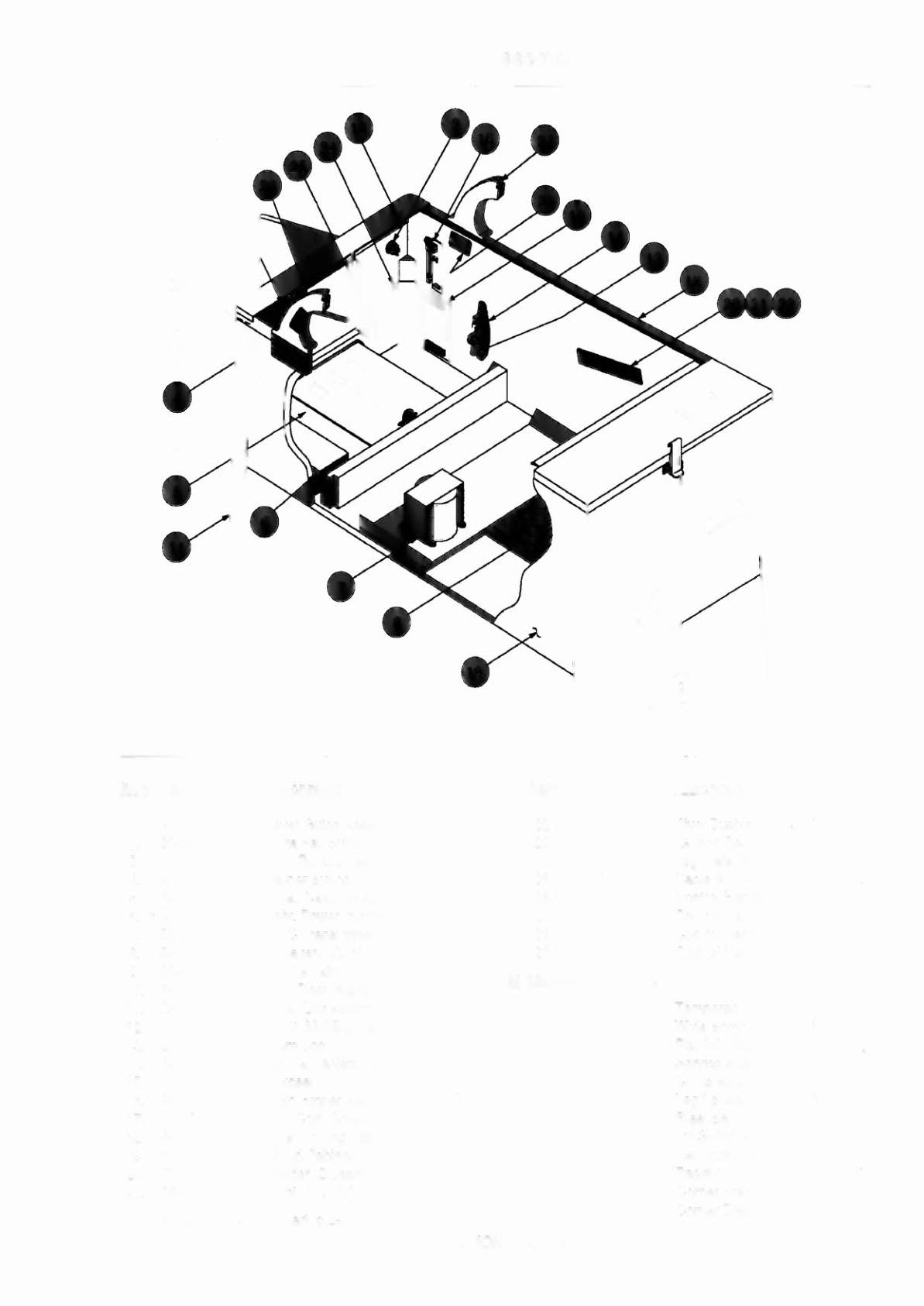

Cabinet Assembly
JWn
part Number
Description
JWn
part Number
Description
1.
A-16773
Lever Guide Assembly
22.
02-4352
Pivot Bushing (2 Used)
2.
20-9663-9
Extra Ball Button, Yellow
23.
20-9663-B-4
Launch Ball, Red
3.
20-9663-1
Start Button, Yellow
24.
01-11400
Leg Plate (4 Used)
4.
A-16883-4
Flipper Button - Red (2 Used)
25.
A-17175-1
Cable & Interlock Switch Assy.
5.
A-17445-1
6-Ball Cashbox Assembly
26.
A-18016-1
Control Handle Assy., Right
6.
*
A-17540
Univ. Power Interface Assy.
27.
A-18016-2
Control Handle Assy., Left
7.
561 0-13953-00 WPC Transformer
28.
A-18142-1
Control Handle Plate, Right
8.
5555-12929-00 Speaker, 40, 6", 25w
29.
A-18142-2
Control Handle Plate, Left
9.
20-9347
Toggle Latch
• Miscellaneous Parts:
10. A-17051-1
Coin Door Interface Bd.
11. C-l0843-2
Metal Leg Assembly
08-7028-1
Tempered Playfield Glass,
12. A-16055
Front Molding Assembly
Wide Body: 23.75" x 43"
13. 20-6502-A
Plum Bob
01-10797
Playfield Support Bar, 18" Long
14. A-1S361
Tilt Mechanism Assembly
01-11791
Service Switch Actuator
15.
*
Cordset
01-12352
Clip Bracket
16. A-17316
Opto Flipper Assembly (2 Used)
08-7377
Leg Leveler Adjuster, 3"
17. 01-10714
Line Cord Cover
20-6500
Steel Ball,
1-1/16" (6)
18. A-12359-3
Side Molding Assy. (2 Used)
A-17195
Tilt Switch Assy. w/Cable
19.
11-1171
Wood Cabinet
01-12328-1
Backbox Mounting Brkt., Left
20.
01-11408
Spacer (2 Used)
01-12328-2
Backbox Mounting Brkt., Right
21.
02-4329-1
Pivot Nut,
7/8"
(4 Used)
01-12819
Corner Bracket, Right
*
See Application Chart (p.2-4).
01-12820
Corner Bracket, Left
DEMOLITION MAN 2-3
