A-8039-3

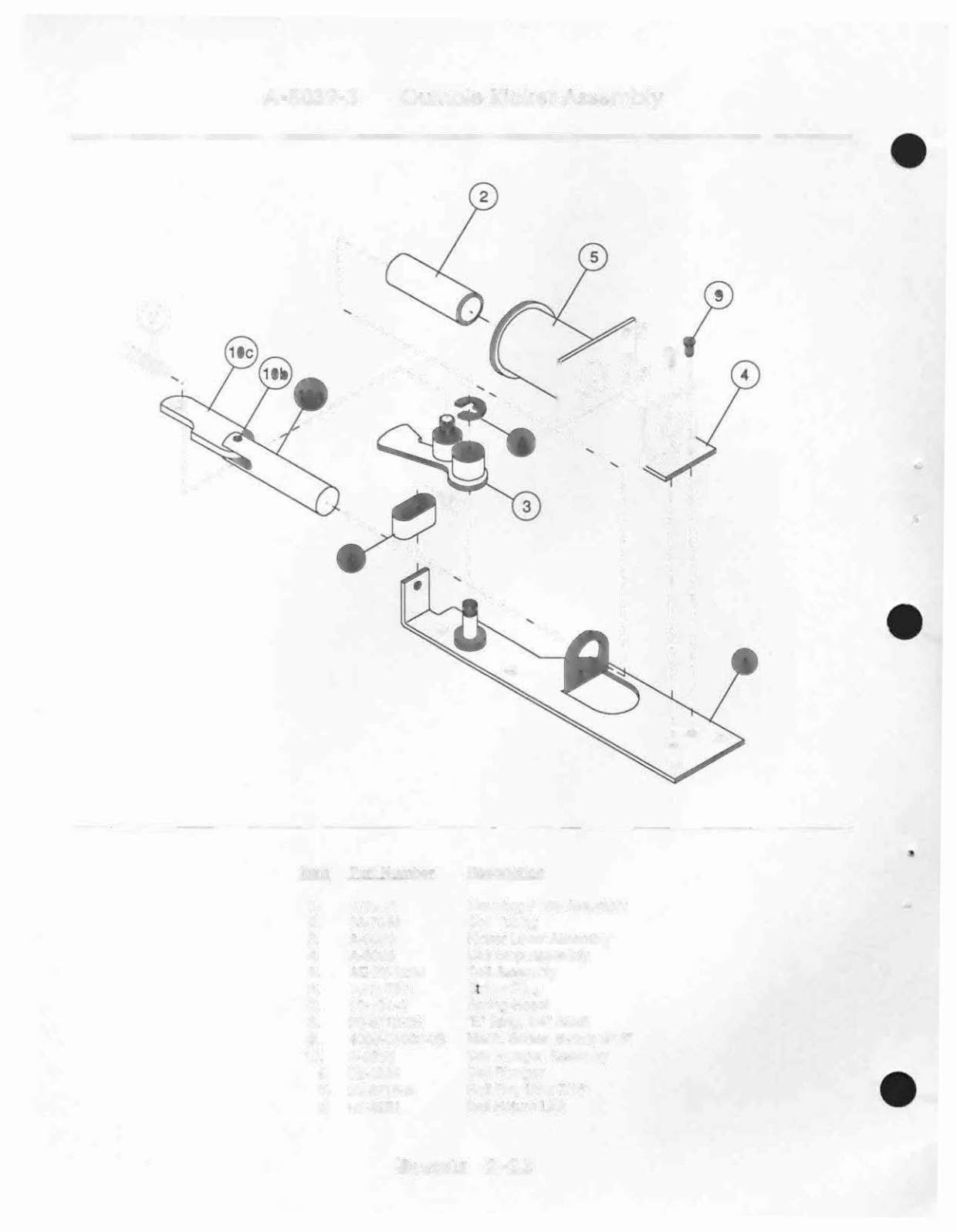

Outhole Kicker Assembly
r .
I
.
I
I
I
....
.....
....
.•.•.
.•..•.
<,
....
•......
.•.•.
..•.
llitm
Part Number
Description
1.
A-e378
Mounting Plate Assembly
2.
03-7066
Coil TubIng
3.
A-SBB9
Kicker Lever Assembly
4.
A-80aS
Coil
Slop
Assembly
5.
AE-27-1200
Coll Assembly
6.
03-7176-'
Striker Ring
7.
10-101-4
Sprlng-Resat
8.
20-8712-25
"EO
Rlng,
1/4"
Shaft
9.
4006-01003-03
Mach. Screw, 6~32 x 3/16"
10.
A-a33S
Coil Plunger Assembly
a)
02-2364
Coli Plunger
•
b) 20-8716-5
Roll Pin.
1/8
x 7/16"
c)
01-4251
Ban
Return link
aDt'Stuls
