Cabinet (Rear View)

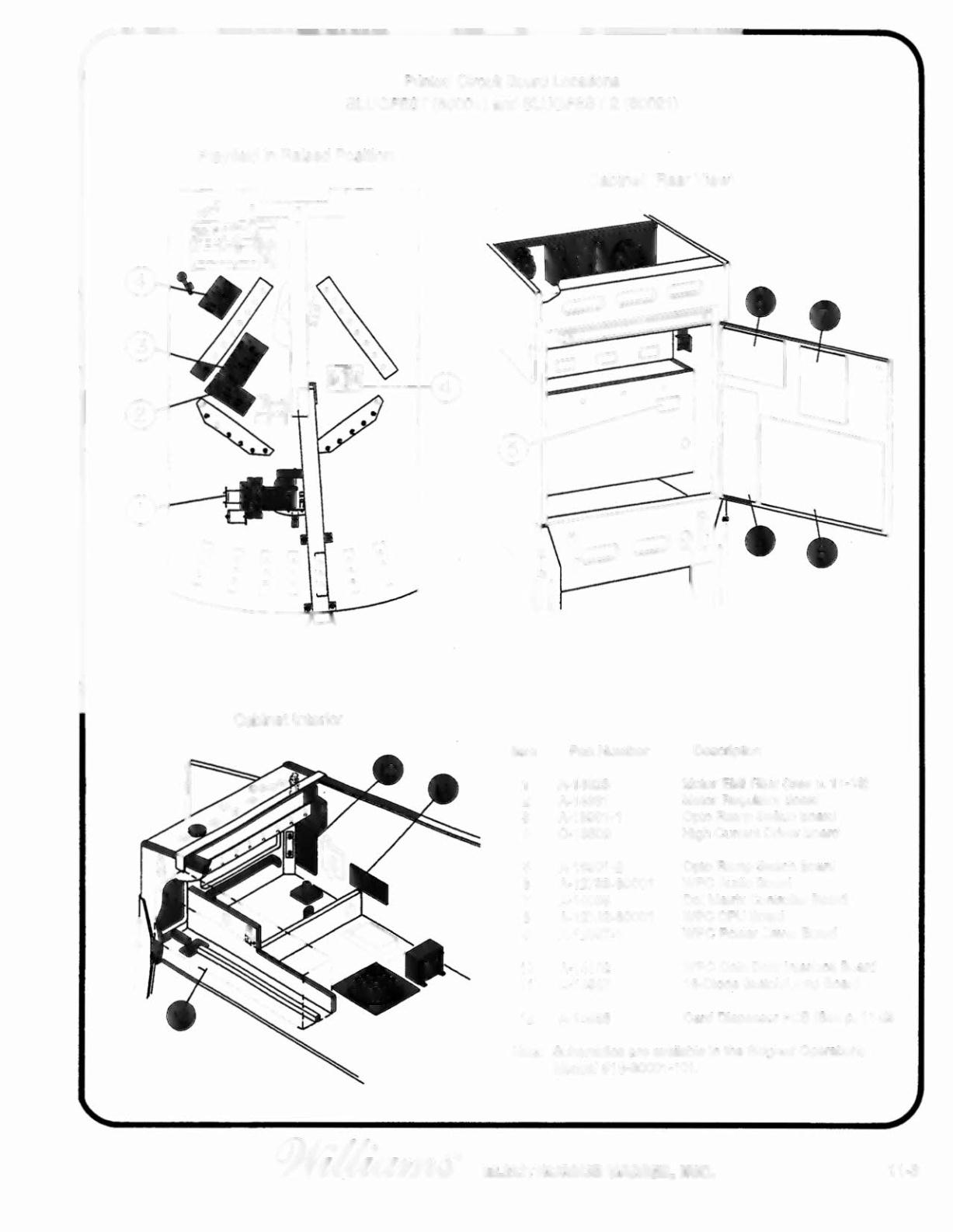

Printed Circuit Board Locations
SLUGFEST (60001) and SLUGFEST 2
(60021)
Item Part Number
Description
1 A·14G23
Motor EMI Filter (See p. 11·18)
2
A·14381
Motor Regulator Board
3 A·13901·1
Opto Ramp SWItch Board
4 C·13509
High Current Driver Board
5
A·13901·2
Opto Ramp Switch Board
G A·12738-60001
WPC Audio Board
7 A·14039
Dot Matrix Controller Board
8
A-12742-60001
WPC CPU Board
9 A-12G97-1
WPC Power Driver Board
10 A-14102
WPC Coin Door Interface Board
11 A-14567
lS-Diode SwitcM..amp Board
12 A-14G33
Card Dispenser PCB (See p. 11-23
Note:
Schematics are available in the Slugfest Operations
Manual #16-60001-101.
Playfield in Raised Position
Cabinet Interior
ELECTRONICS GAMEB.INC.
11-3
